Type C Camlock Fittings

Liquip camlocks are built to NATO specification (MIL-C-27487 (Superceded by A-A 59326) and are of aluminium construction.

For Aviation selectivity Notches and pins are used to dedicate these couplings for use with Aviation Gasoline or Aviation Turbine Fuel, thus preventing the wrong product being loaded into the wrong tank. All Aviation units conform to Australian Code of Practice CP23.

Type C Coupler - Cam and Groove Female coupler x Hose Tail.

Type C couplers are normally used with Type E adapters but can also be used with Type A and F adapters and Type DP (Dust Plug) of identical size.

Technical Information
Ordering Information
Resources

Ordering Information

FEMALE CAMLOCK TO HOSE TAIL

*Static = Static safe connection allowing inner and outer wires of hose to positively connect to end fitting.
*Avgas = Selectivity for Aviation Gasoline
*Jet = Selectivity for Jet Fuel

Item	Camlock	Tail	Option*
NA40-9A	1½"	1½" Straight	N/A
NA50-9A	2"	2" Straight	N/A
NA65-13A	2½"	2½" at 68°	N/A
NA65-9A	2½"	2½" Straight	N/A
NA80-13A	3"	3" at 68°	N/A
NA80-9-50A	3"	2" Straight	N/A
NA80-9-65A	3"	2½" Straight	N/A
NA80-9A	3"	3" Straight	N/A
NA80-9E	3"	3" Straight	Static
NA80-9EW	3"	3" Straight	Static
NA80-9G	3"	3" Straight	Avgas
NA80-9J	3"	3" Straight	Jet
NA100-9A	4"	4" Straight	N/A
NA100-9EW	4"	4" Straight	Static
NA100-9G	4"	4" Straight	Avgas
NA100-9J	4"	4" Straight	Jet

Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.

Submit Enquiry

Submit a product Enquiry / Quote to Liquip customer service

Save as Wishlist

Save as Wishlist - handy function for account holders

Send to a Friend

Send you selection of products to a friend via a convenient email link

Image	Item	Description	Add Item into Enquiry Cart
	NA100-9A	FEMALE CAMLOCK (4") TO HOSE TAIL (4" Straight)
	NA100-9EW	FEMALE CAMLOCK (4") TO HOSE TAIL (4" Straight), Static
	NA100-9G	FEMALE CAMLOCK (4") TO HOSE TAIL (4" Straight), Avgas

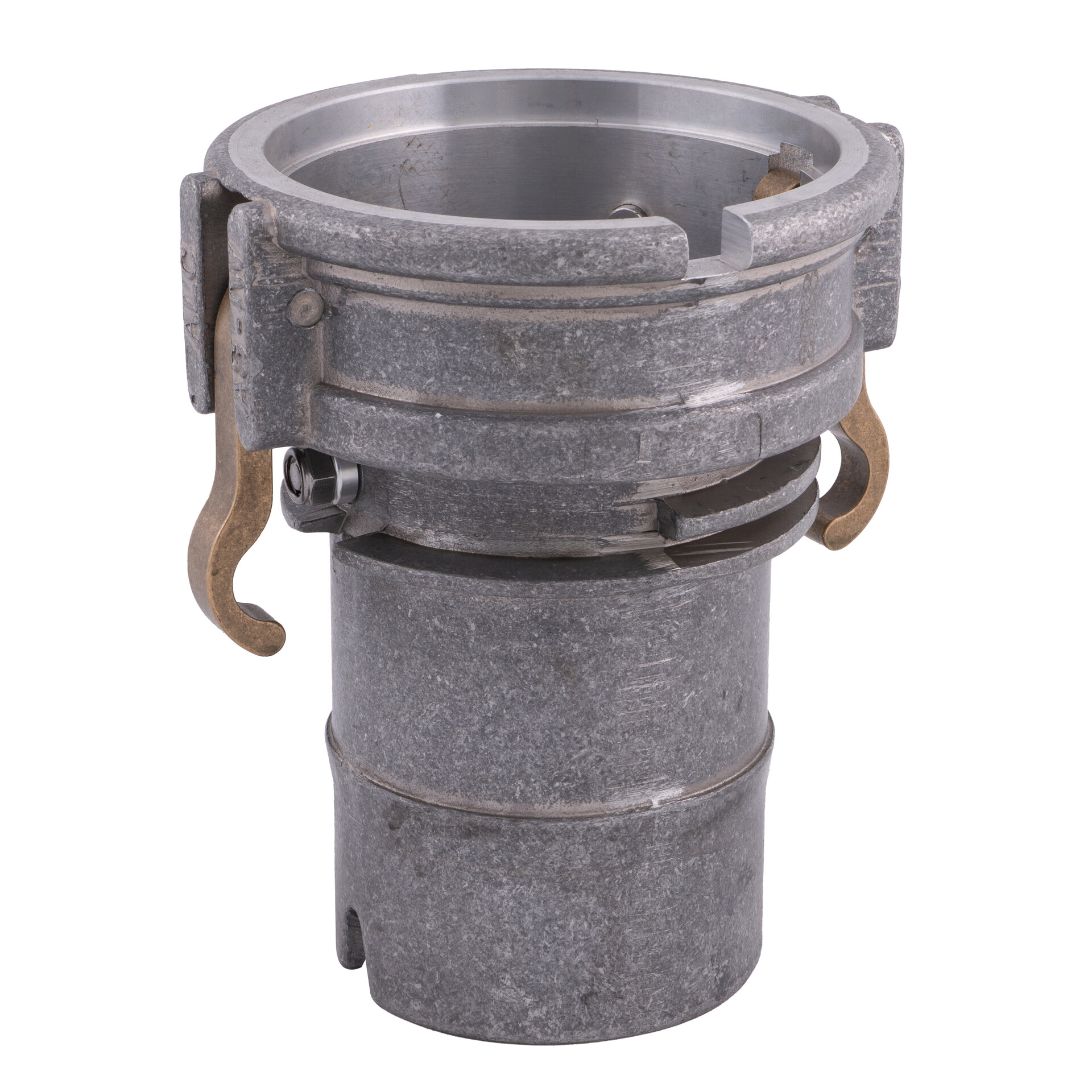

	NA100-9J	FEMALE CAMLOCK (4") TO HOSE TAIL (4" Straight), Jet
	NA40-9A	FEMALE CAMLOCK (1½") TO HOSE TAIL (1½" Straight)
	NA50-9A	FEMALE CAMLOCK (2") TO HOSE TAIL (2" Straight)
	NA65-13A	FEMALE CAMLOCK (2½") TO HOSE TAIL (2½" at 68°)
	NA65-9A	FEMALE CAMLOCK (2½") TO HOSE TAIL (2½" Straight)
	NA80-13A	FEMALE CAMLOCK (3") TO HOSE TAIL (3" at 68°)
	NA80-9-50A	FEMALE CAMLOCK (3") TO HOSE TAIL (2" Straight)
	NA80-9-65A	FEMALE CAMLOCK (3") TO HOSE TAIL (2½" Straight)

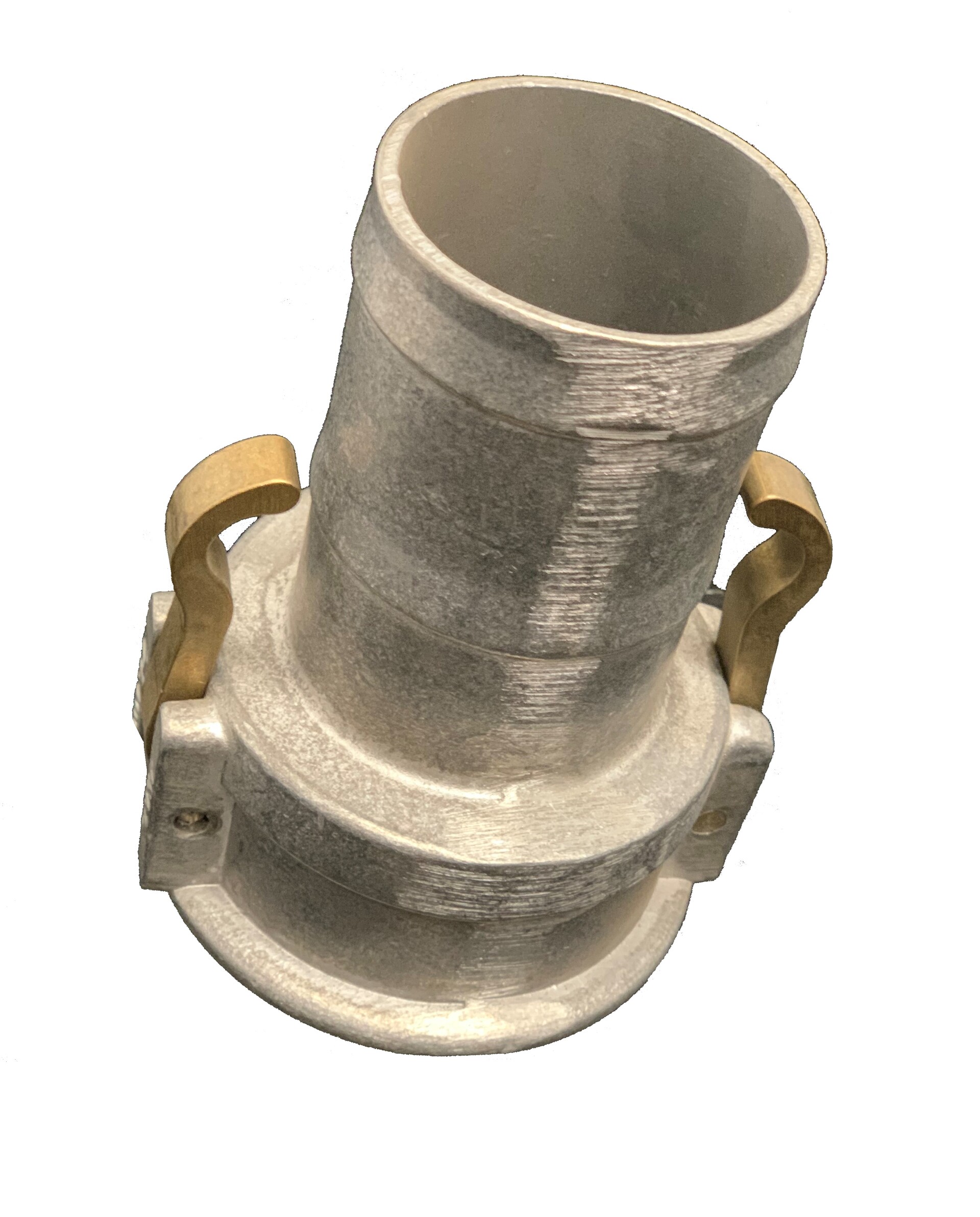

	NA80-9A	FEMALE CAMLOCK (3") TO HOSE TAIL (3" Straight)
	NA80-9E	FEMALE CAMLOCK (3") TO HOSE TAIL (3" Straight), Static

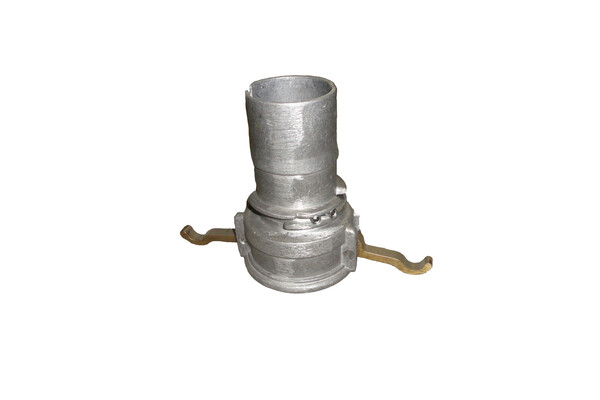

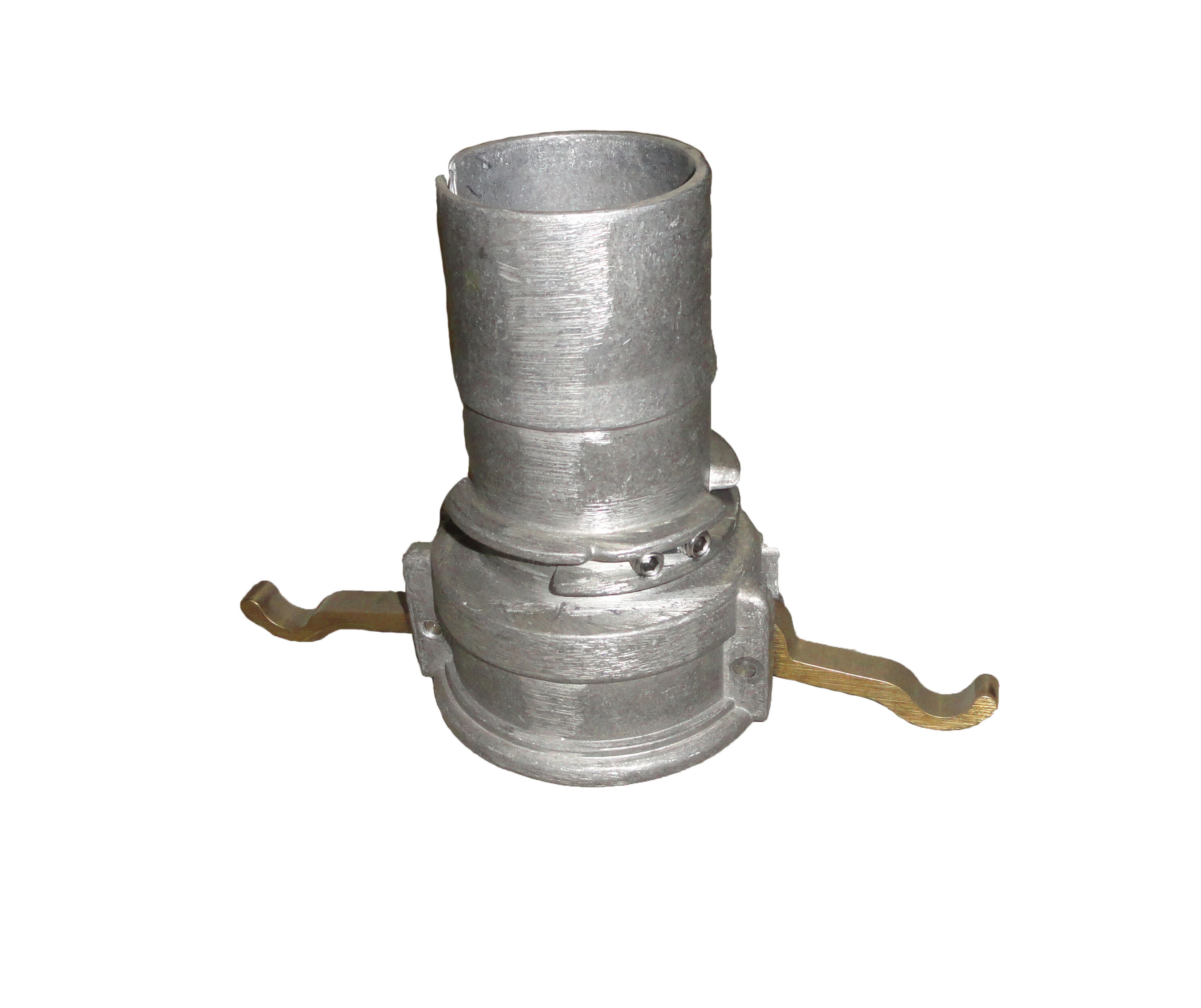

	NA80-9EW	FEMALE CAMLOCK (3") TO HOSE TAIL (3" Straight), Static
	NA80-9G	FEMALE CAMLOCK (3") TO HOSE TAIL (3" Straight), Avgas

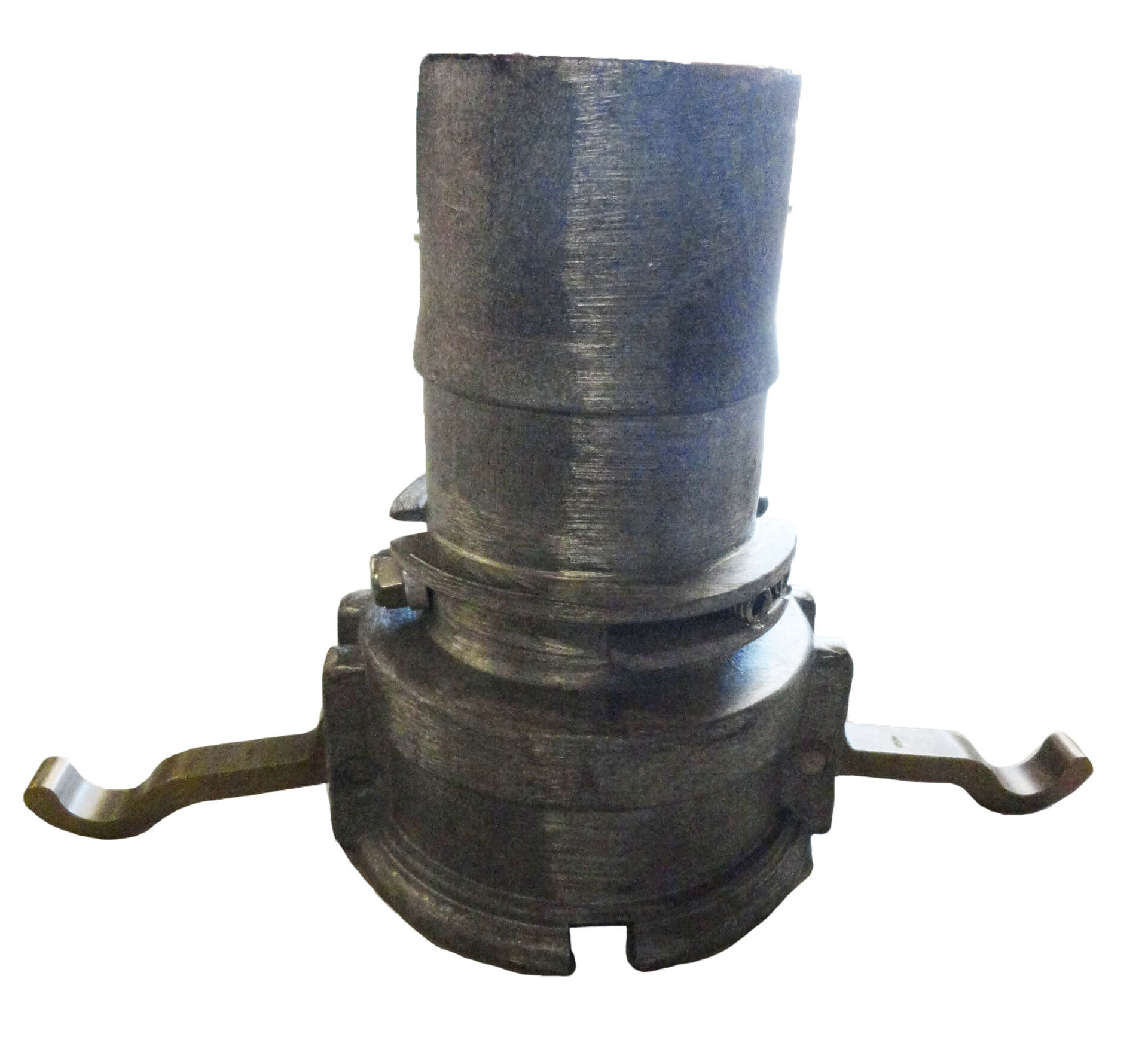

	NA80-9J	FEMALE CAMLOCK (3") TO HOSE TAIL (3" Straight), Jet
