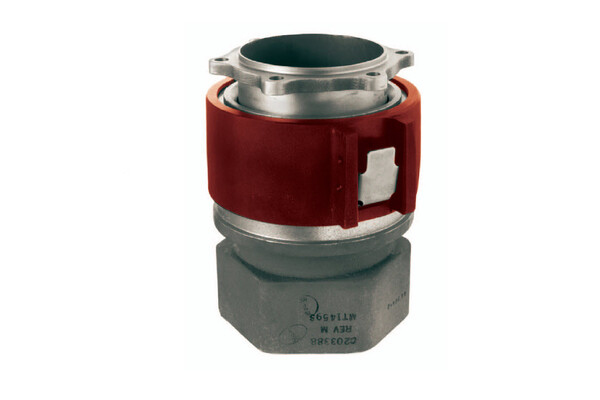

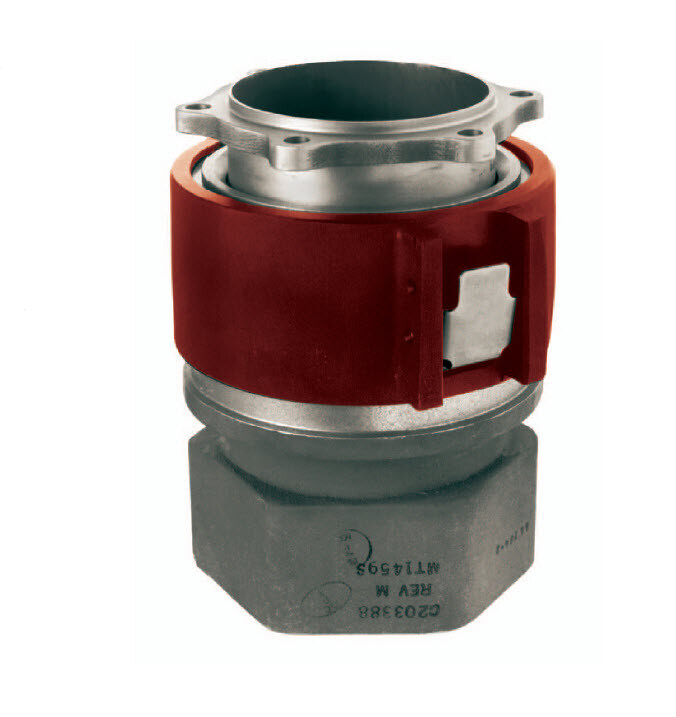

Carter Dry Break Quick Disconnect
Dry break mechanism proven from long years of service in the older Model 60672-1 design QD. Dry break inlet half minimizes fuel spillage during screen check
Sorry About That… This Product is an Obsolete Item…
This product is no longer available. To assist you with finding an alternative product that will perform the same function we have offered some suggested replaceable products below.
We have also made information about obsolete products available to assist with purchasing spare parts that may still be available. You can view obsolete product information by searching for product codes in our SEARCH bar.
If you would like any further information regarding our parts please don’t hesitate to contact your local Liquip representative and we will get back to you as quickly as possible.
Features & Benefits
- Dry break mechanism proven from long years of service in the older Model 60672-1 design QD
- Dry break inlet half minimizes fuel spillage during screen check
- Special seal design and impregnated Teflon® wear rings facilitate disconnect and swivel capability. Teflon wear rings also reduce side loading of seal, providing better sealing capability than other designs.
- Wear rings prevent metal to metal contact (galling) of male and female halves
- Military male half adapter has o-ring groove — expensive gasket not needed
- Spring loaded thumb latches lock ball sleeve. No locking screws — no tools required. Either latch will keep sleeve in locked position. Provides two independent locks.
- Spring load on sleeve in opposite direction of normal hose drag (won’t accidentally be pulled to the unlocked position) — third lock
- Safety clip (formerly option X, now standard) — fourth lock
- Higher strength check valve actuating fork
- CRES (stainless steel) ball race rings utilized on male adapter half. Eliminates aluminium bronze male used on older commercial 60672-1 model.
- Female inlets available in 2, 2-½ & 3 inch NPT & BSPP threads
- 40, 60 & 100-mesh screens available
- Male outlet adapters available to mate all military D-1/D-2, 60427, 64348, 1-½ & 2 inch NPT overwing and closed circuit refuelling (CCR) nozzles & 1-½ & 2 inch BSPP overwing nozzles
