Balance assembly - VBB Series

Sorry About That… This Product is an Obsolete Item…

This product is no longer available. To assist you with finding an alternative product that will perform the same function we have offered some suggested replaceable products below.

We have also made information about obsolete products available to assist with purchasing spare parts that may still be available. You can view obsolete product information by searching for product codes in our SEARCH bar.

If you would like any further information regarding our parts please don’t hesitate to contact your local Liquip representative and we will get back to you as quickly as possible.

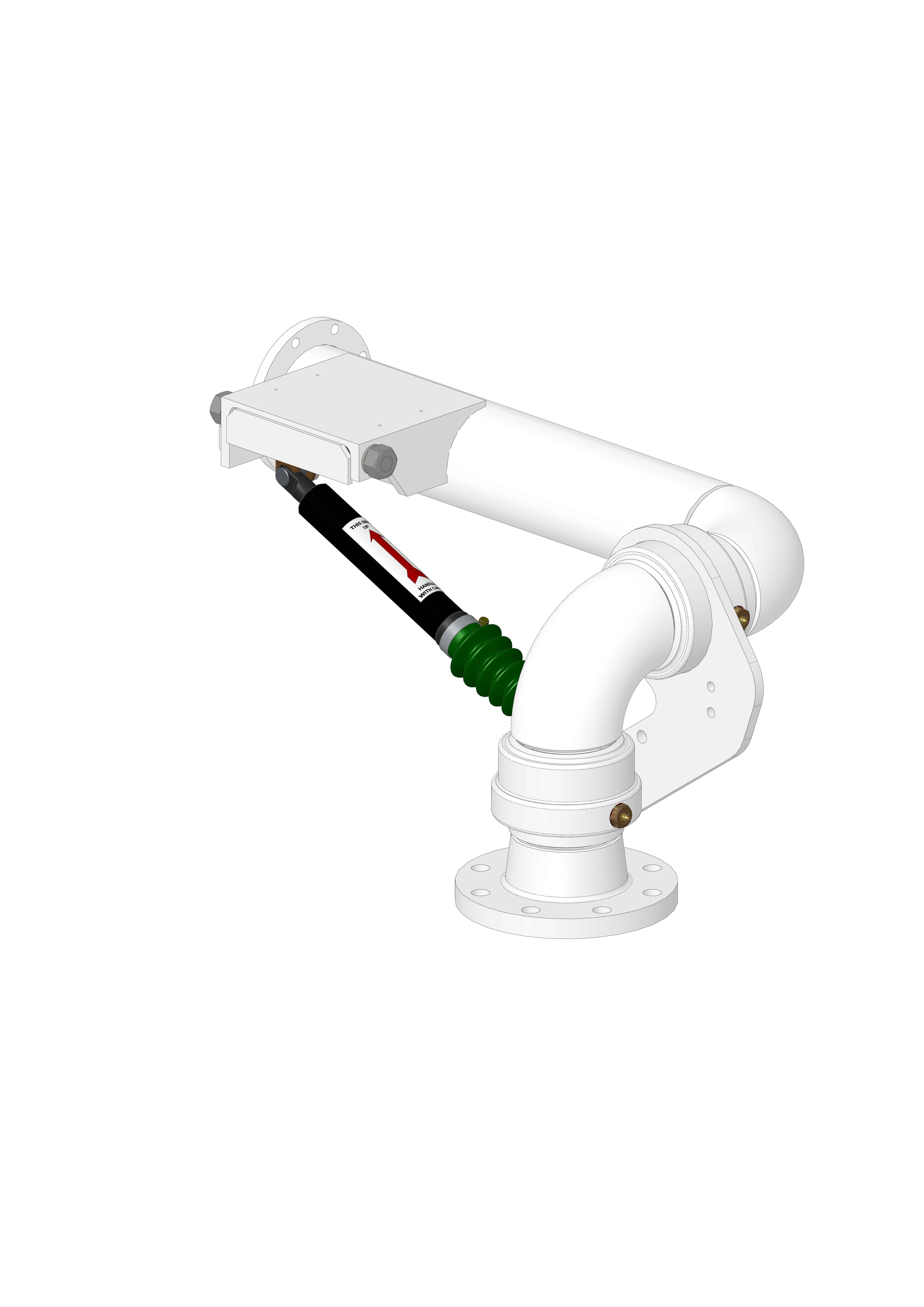

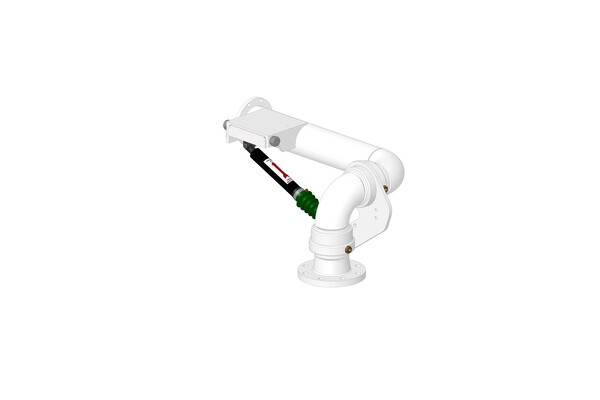

Liquip offers a unique balance assembly to be used with long reach and low profile arms. These can also be used for gravity or pumped discharge of road and rail tankers, as well as for bottom loading.

Liquip’s VBB series is used with MK3 loading arms. The “Velvet Touch” MK 3 loading arm is a breakthrough in balance systems for bottom loading. This particular loading arm has been purpose designed to suit that market where a practical application outweighs style and looks.

ADD TO ENQUIRY CART REQUEST A QUOTE

Features & Benefits
Technical Information
Ordering Information
Associated Equipment

Features & Benefits

Utilises Liquip’s famous "Velvet Touch" design.
Arms can reach both sides of a loading gantry.
Available in 75mm (3") or 100mm (4").
Available in a range of materials to suit various fluid transfer applications.
Uses a single gas strut to counter-balance the weight of the arm, which means the up and down movement of the arms requires minimal effort.
Steel swivels run on needle roller bearings with much lower friction than the traditional double row ball bearings.
A pressure relieving nipple allows old grease and particles to be expelled and provides visible evidence of greasing being thorough and prevents over pressuring.

Technical Information

Maximum Pressure
1,000 kPa.

Maximum Viscosity
150cSt viscosity (when loading valve is used).

Typical Reach
1,750mm.

Operating Temperature
-30^oC to 200^oC (depending on seals used).

Mounting
100mm standard size but also available in 75mm NB.

Materials
Mild Steel and Stainless Steel 316 grade is available.

Seals
Product seals are available in Viton or PTFE.

Ordering Information

VBB075MMV: MK3 balance assembly, mild steel c/w viton seals.

VBB075MMLV: Left hand MK3 balance assembly, mild steel c/w viton seals.

VBB100MMILVG: Left hand, inverted MK3 balance assembly, mild steel c/w viton seals.

VBB100MMIT: Inverted MK3 balance assembly, mild steel c/w teflon seals.

VBT100MMIVG: MK3 balance assembly, steel c/w viton GFLT seals.

VBB100MMLVG: Left hand MK3 balance assembly, mild steel c/w viton GFLT seals.

VBB100MMIT: Inverted MK3 balance assembly, mild steel c/w Teflon seals.

VBB100MMIVG: Inverted MK3 balance assembly, mild steel c/w Viton GFLT seals.

VBB100MMLT: Left hand MK3 balance assembly, mild steel c/w Teflon seals.

VBB100MMLVG: Left hand MK3 balance assembly, mild steel c/w Viton GFLT seals.

VBB100MMT: Mk3 balance assembly, mild steel c/w Teflon seals.

VBB100MMVG: MK3 balance assembly, mild steel c/w Viton GFLT seals.

VBB100SSIT: Mk3 balance assembly, Stainless steel c/w Teflon seals.

VBB100SSIV: Inverted MK3 balance assembly, Stainless steel c/w Viton seals.

VBB100SST: MK3 balance assembly, Stainless steel c/w Teflon seals.

Contact Liquip for Z-kits which include struts.

Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.

Submit Enquiry

Submit a product Enquiry / Quote to Liquip customer service

Save as Wishlist

Save as Wishlist - handy function for account holders

Send to a Friend

Send you selection of products to a friend via a convenient email link

Item	Description
VBB075MMLV	Left hand MK3 balance assembly, mild steel c/w viton seals.	(Obsolete item)
VBB075MMV	MK3 balance assembly, mild steel c/w viton seals.	(Obsolete item)
VBB100MMILVG	Left hand, inverted MK3 balance assembly, mild steel c/w viton seals.	(Obsolete item)
VBB100MMIT	Inverted MK3 balance assembly, mild steel c/w teflon seals.	(Obsolete item)
VBB100MMIVG	Inverted MK3 balance assembly, mild steel c/w Viton GFLT seals.	(Obsolete item)
VBB100MMLT	Left hand MK3 balance assembly, mild steel c/w Teflon seals.	(Obsolete item)
VBB100MMLVG	Left hand MK3 balance assembly, mild steel c/w viton GFLT seals.	(Obsolete item)
VBB100MMT	Mk3 balance assembly, mild steel c/w Teflon seals.	(Obsolete item)
VBB100MMVG	MK3 balance assembly, mild steel c/w Viton GFLT seals.	(Obsolete item)
VBB100SSIT	Mk3 balance assembly, Stainless steel c/w Teflon seals.	(Obsolete item)
VBB100SSIV	Inverted MK3 balance assembly, Stainless steel c/w Viton seals.	(Obsolete item)
VBB100SST	MK3 balance assembly, Stainless steel c/w Teflon seals.	(Obsolete item)
VBT100MMIVG	MK3 balance assembly, steel c/w viton GFLT seals.	(Obsolete item)
