Remote Probe Holders

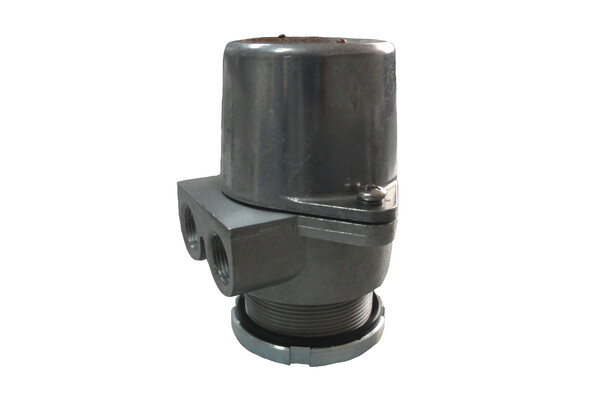

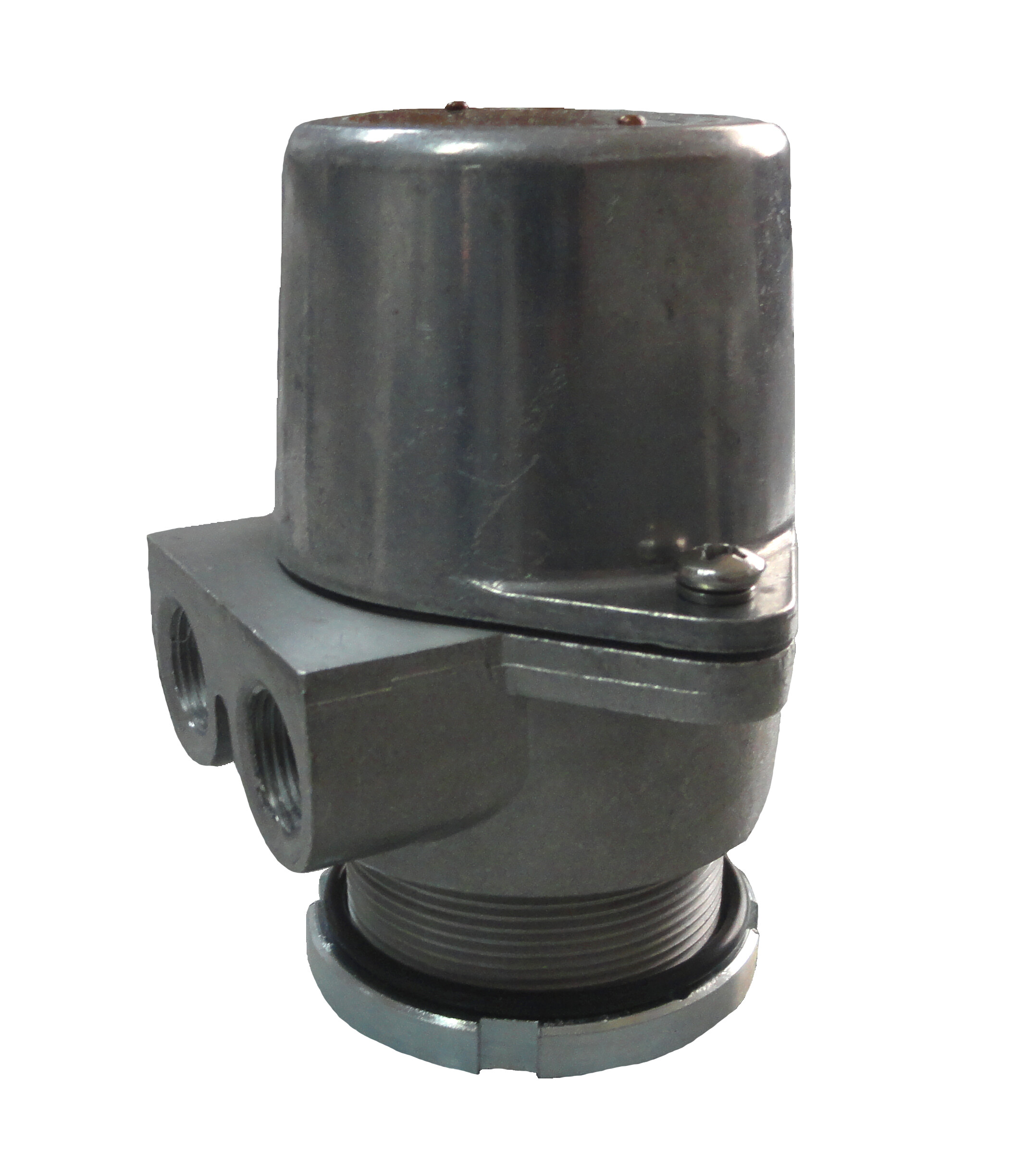

Liquip offers a PJB500, remote probe holder, which is a walkway or manhole cover mounted overfill probe holder.

It provides a protected, clean and dry environment to mount overfill probes to tanker walkways.



Features & Benefits
  • Housing can be mounted through a hole and sealed with the locknut or screwed directly into a 2" BSP thread.
  • Adjustable height by loosening internal capscrews and sliding probe up or down to the correct sensing height.
  • The body has two M20 x 1.5mm entries. This eliminates the need to mount a tee with cover in the conduit line. This will allow for better connections and easier fault finding.

Recommended products for replacement

    Technical Information

    -Will accommodate probe diameters of 22.3mm to 25.5mm (such as Liquip LDP style).
    -Maximum length of probe inside housing is 87mm.

    -Plate thickness for mounting is from 4 to 17mm.
    -Mounting via 50mm (2") BSP male thread or into 62mm dia. hole.

    Overall height when mounted is 96mm, overall diameter is 110mm.

    -Lid & body: Aluminium
    -Seals: Nitrile
    -Screws & Washers: Zinc plated.

    Ingress Protection

    Ordering Information

    PJB500: Remote Overfill Probe Holder.

    Associated Equipment

    LDP202: 2 wire Aluminium Overfill Probe.

    LDP205: 5 wire Aluminiun Overfill Probe.

    LDP102-4: Aluminium probe extension (80mm).

    LDP105-2: Aluminium probe extension (222mm).
