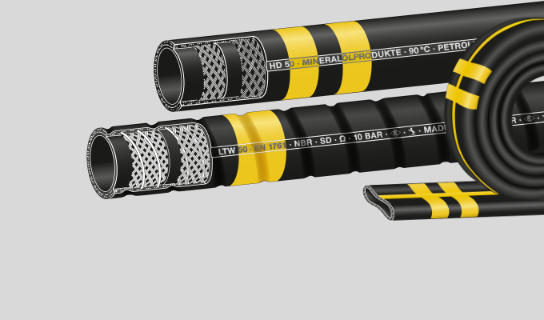

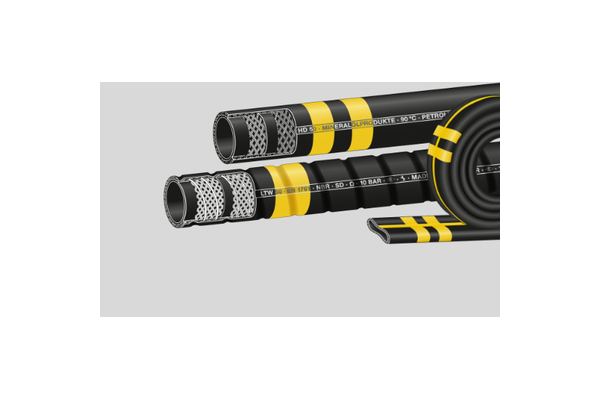

Elaflex Pre-Cut Hose Lengths

Liquip supply the full range of yellow band aircraft refuelling hoses, suitable for all aviation gasoline and jet fuels (JET-A1), anti-icings fluids and motor oils.

Specified by almost all major oil companies.

To simply operations Liquip can provide full coils of hose or can supply cut lengths of hose on site at our Sydney office based on your requirements.

NOTE: Not for suction. Burst pressure > 80 bar / 1200psi.
the hose does not kink with a permanent pressure of at least 0.5 bar.

Note: Liquip can only ship Elaflex Parts to Australia, New Zealand and the Pacific Islands.

Features & Benefits

Elaflex standard type "HD-C" with two textile braids.
Light weight, flexible hose for all purposes.
Holds various European, Australian and American approvals.

Technical Information
Ordering Information

Technical Information

Temperature Range
-30^oC up to +70^oC.

Electrical Resistance
Between 103 and 106 Ohm.

Lining
Nitrile rubber (NBR) seamless tube, anitstatic, no fuel solubility.

Reinforcement
Textile braids without metallic strands.

Cover
Chloroprene (CR), electrically conductive, ozone and flame resistant, highly abrasion resistant.

Approvals
Approved to EN1361 (European), AS2683 (Australian) and API1529 (American) standards.

Ordering Information

To Order pre-cut lengths please contact Liquip and specify what type of hose from the list below and the length required:

Part	Hose Size ID (inches)	Hose Size ID (mm)	Hose Size OD (mm)	Working Pressure (bar)	Test Pressure (bar)	Max Vacuum (bar)	Min Reel Diametered (mm)	Coil Length Options (m)	Approx Weight (kg/m)

3343	1	25	37	20	40	0.5	200	30, 40, 50,60,80	0.8
3344	1 ¼	32	44	20	40	0.4	225	30, 40, 50,60,80	1.0
3345	1 ½	38	51	20	40	0.3	270	30, 40, 50,60,80	1.2
3346	2	50	66	20	40	0.3	400	30, 40, 50,60,80	1.9
3347	2 ½	63	79	20	40	0.2	600	30, 40	2.4
3348	3	75	91	20	40	-	600	40	2.8
3349	4	100	117	20	40	-	900	40	3.7
