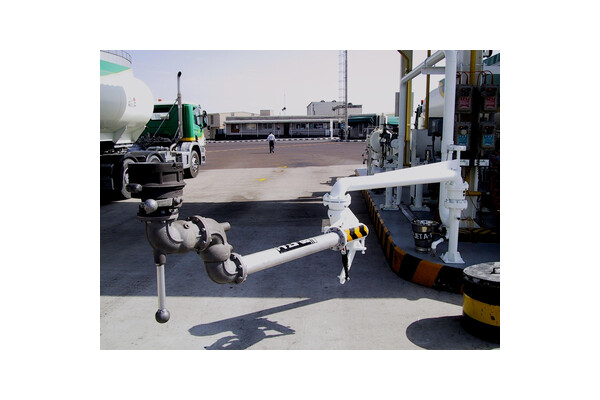

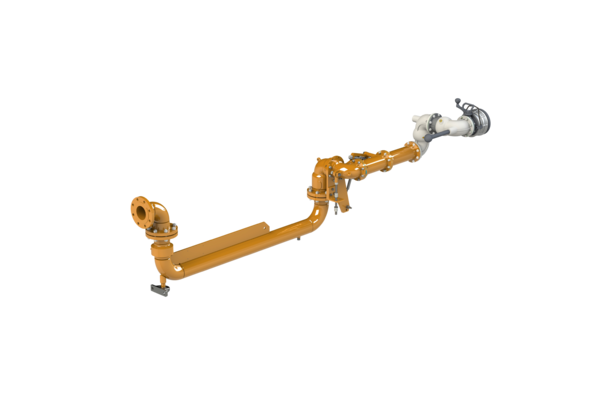

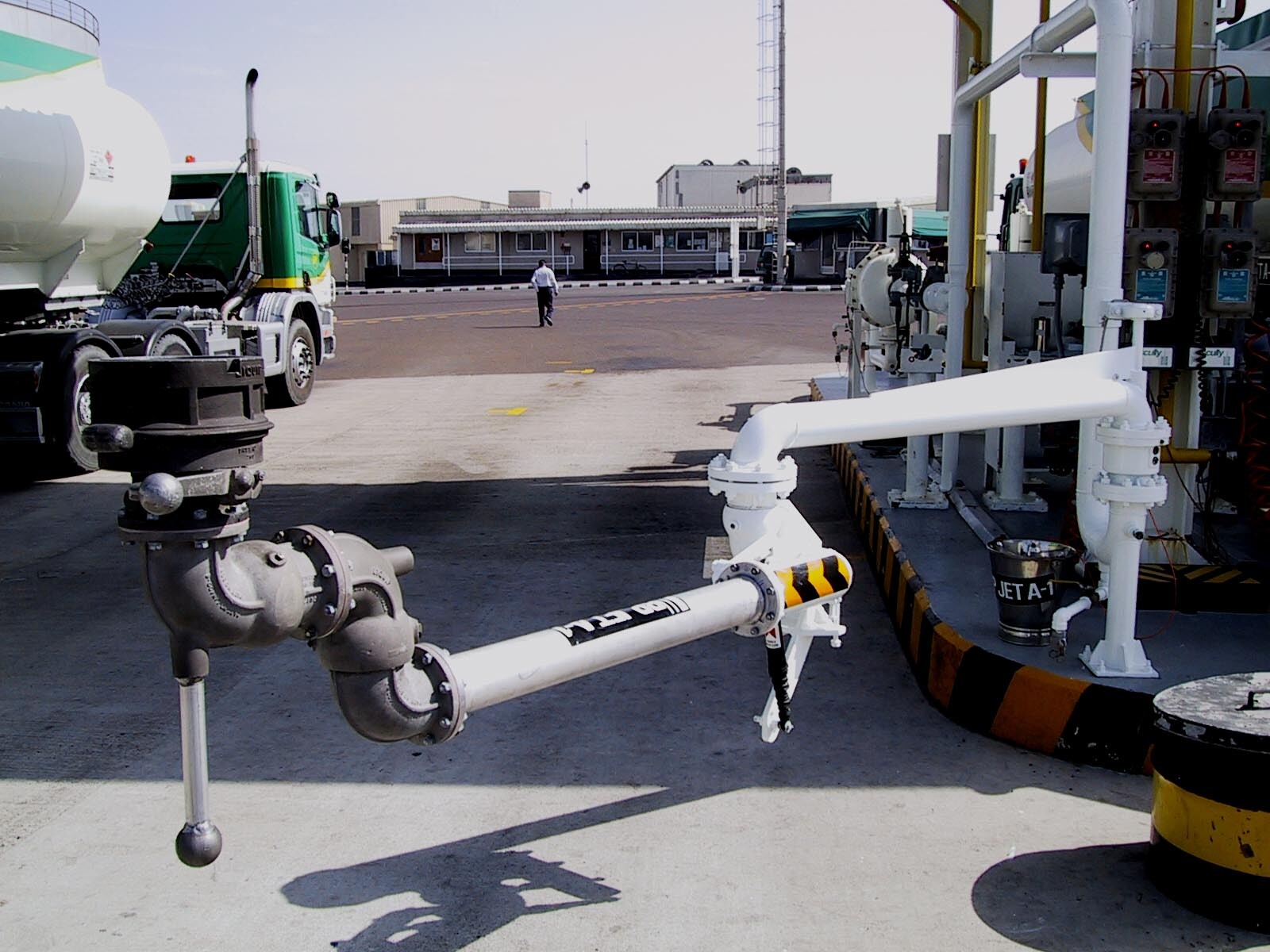

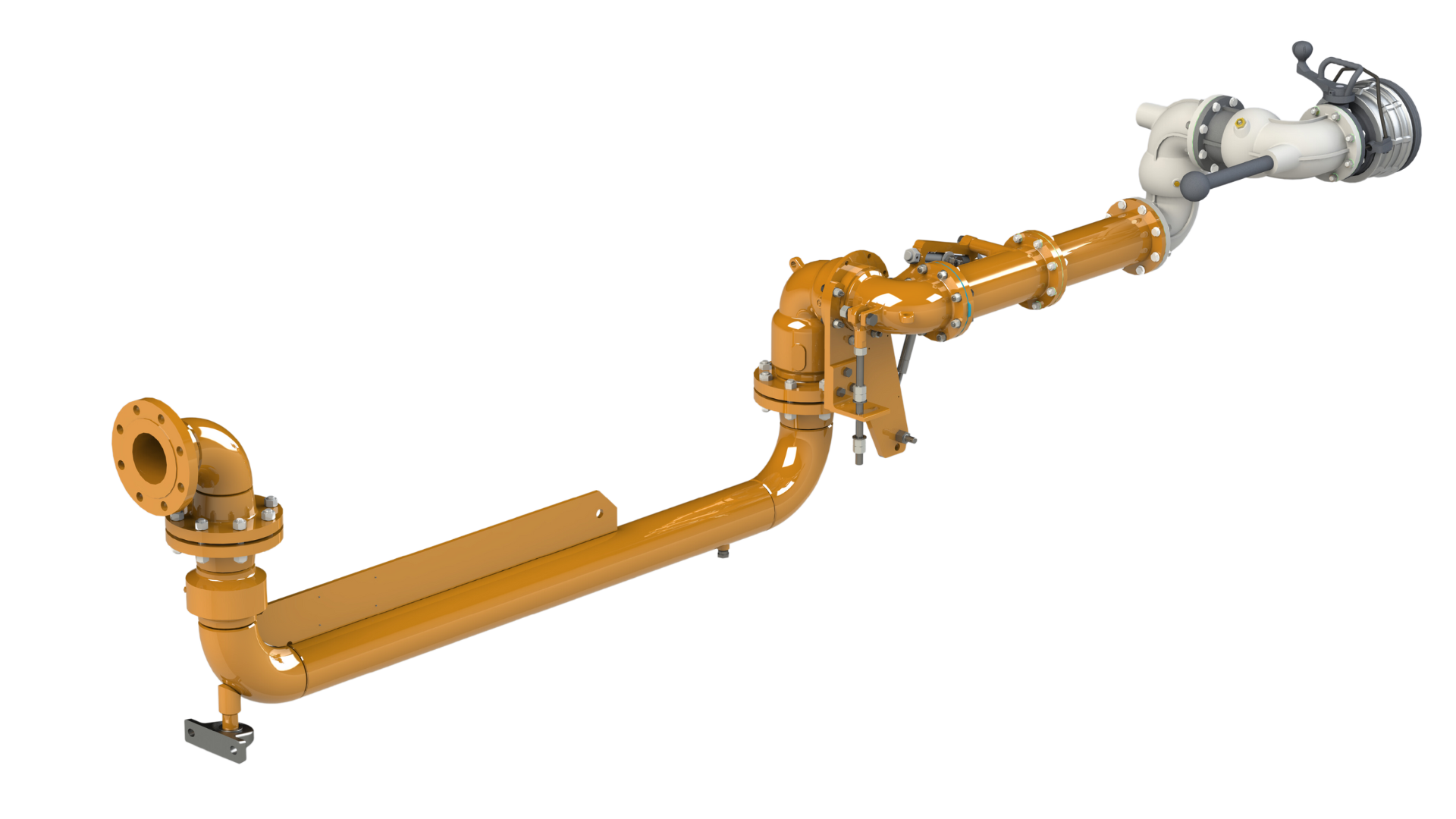

Low Profile Loading and Unloading Arms
Low profile arms can be used for loading or unloading (gravity or pumped) of rail and road tankers. Liquip’s low profile arms are designed for use with standard fuels, aviation, oil and chemical products.
Low profile arms can load at flow rates of up to 2,500 litres per minute and are popular for large single compartment tanker loading and unloading such as railcars and aviation bridging tankers.

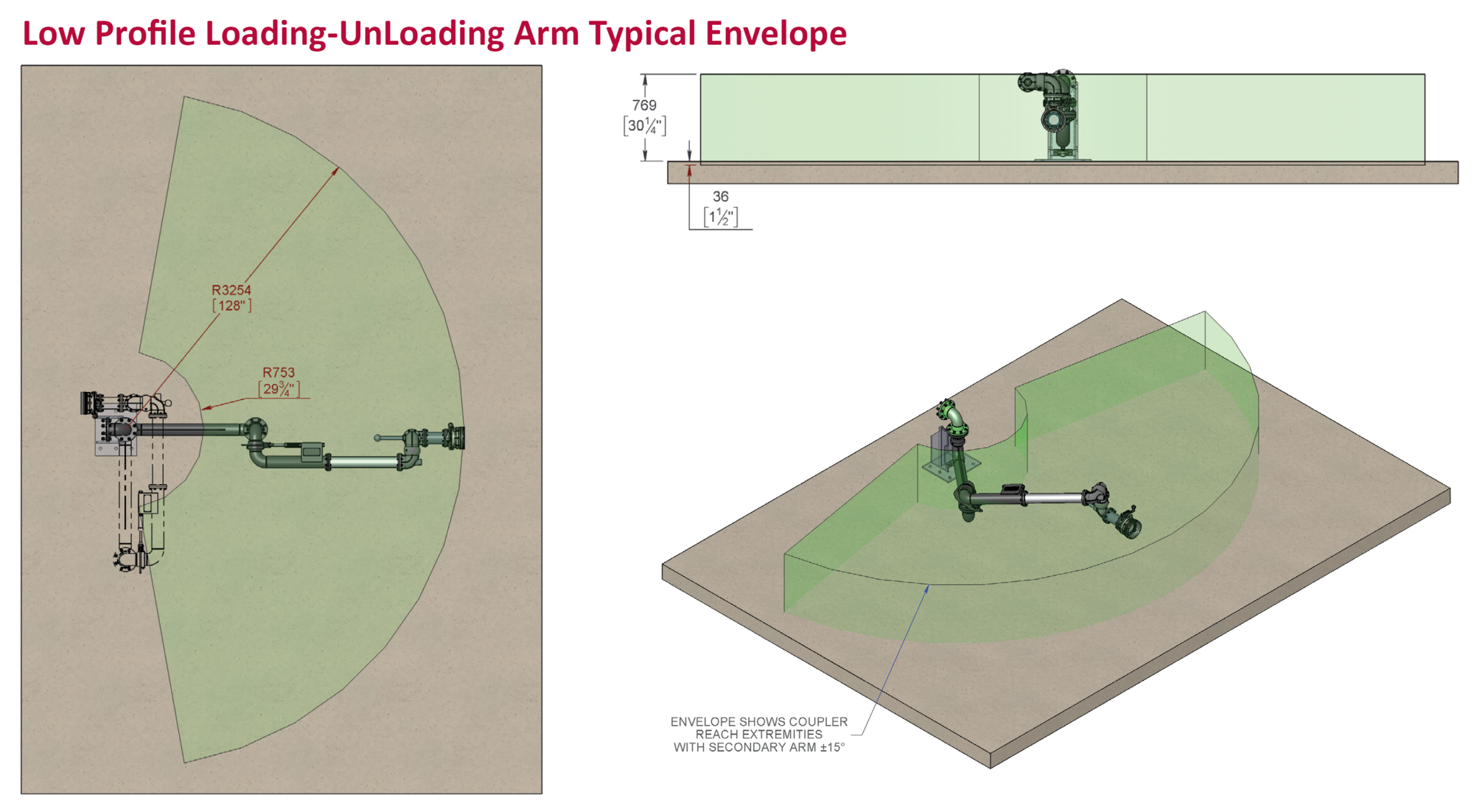

Liquip’s low profile arms incorporate a minimum of five swivel planes of rotation offering complete flexibility and reach to suit a wide range of operational/loading envelopes.
Low Profile arms are designed to be installed at or near ground level and can be mounted on staggered risers to achieve crossover of multiple arms in a compact space.
Liquip can supply loading arm couplers that provide the connection between the tanker and loading arm that are compliant with API RP 1004.
- Versatile low profile design can connect within the standard API envelope, back of a vehicle or underside of a tank.
- Designed to provide long reach operation whilst being easy to operate/manoeuver.
- Reduce trip hazardous by eliminating the need for hose on the ground.
- Compact and safe storage design provides clearance for vehicles and is ideal for where there is confined space limitations.
- Scissor back design means compact storage and no wasted space.
- Can be used in sites without a gantry structure in place.
- Available in a self draining design.
- Quick loading at flow rates of up to 2,500 LPM.
- Provides flexible long range movement.
- Suitable for gravity or pumped discharge of road and rail tankers, as well as for bottom loading.
- Swivel design accommodates changes in elevation or tilting.
- Uses Liquip’s unique gas strut “Velvet Touch“ technology
- Available in a range of materials to suit various fluid transfer applications.
