3" TTMA In-line Strainers

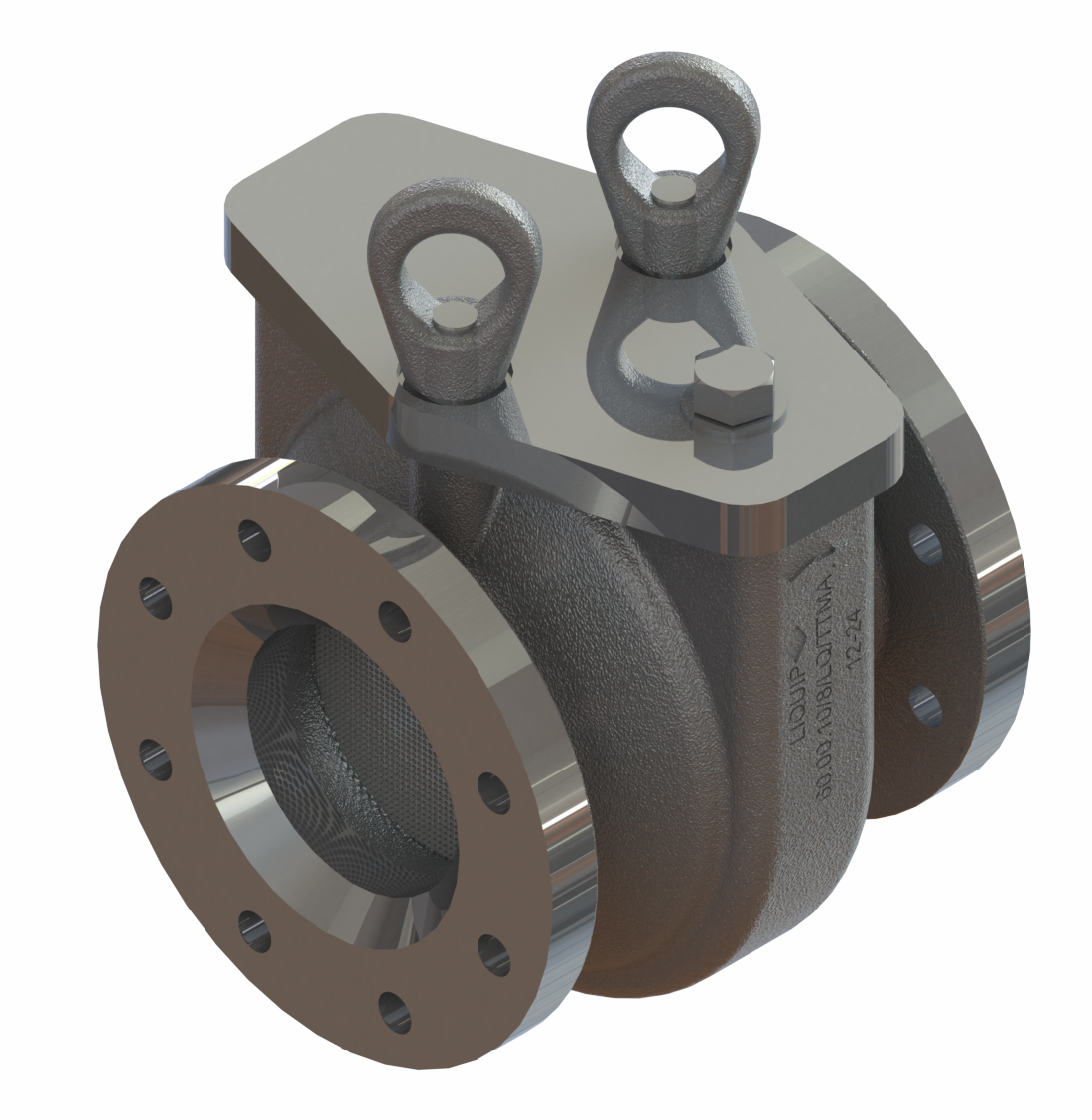

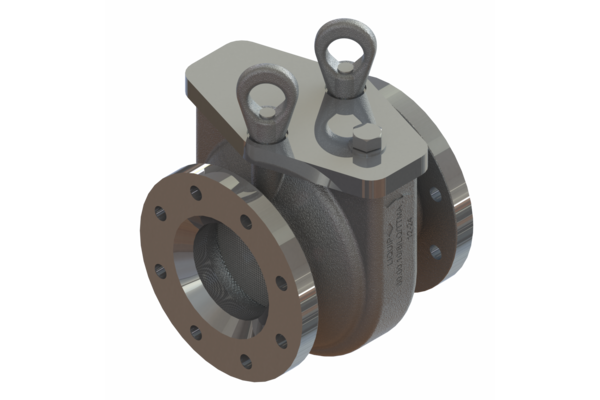

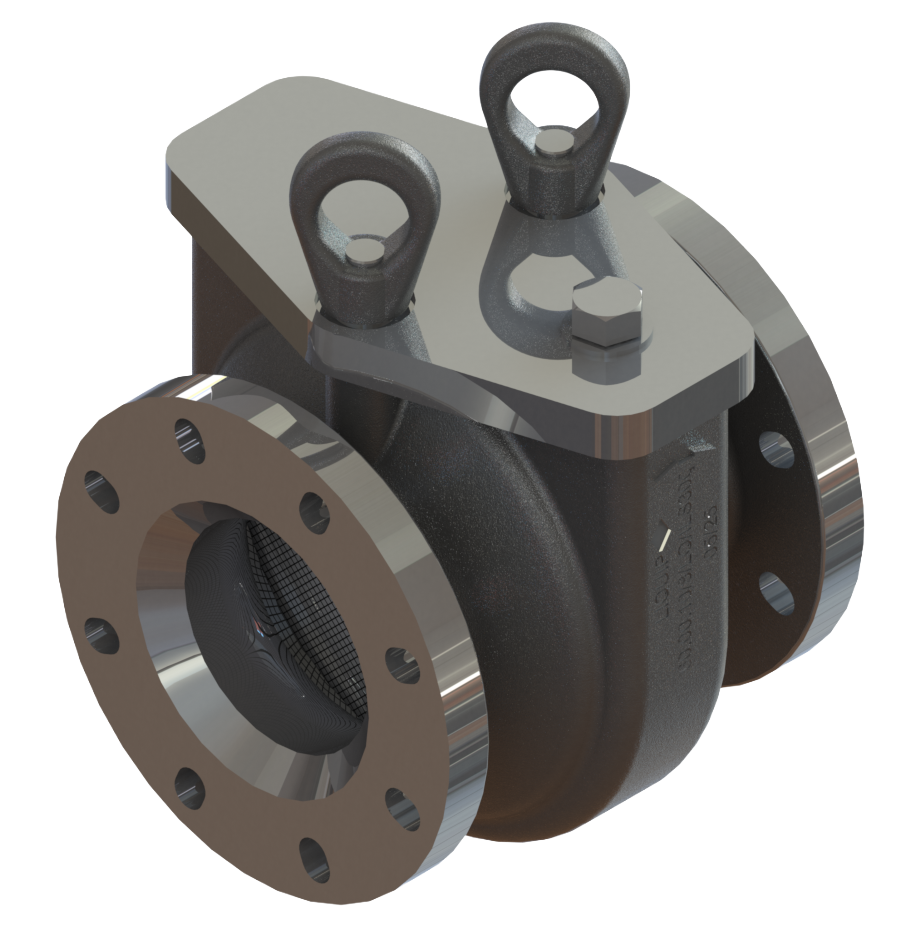

The ILS300 is a lightweight bidirectional aluminium in-line strainer typically installed in mobile pumping systems to protect  downstream equipment from debris and foreign objects.

Features & Benefits
  • Protects downstream equipment such as meters and pumps from debris and foreign objects.
  • Stainless steel strainer basket is bidirectional.
  • Drain boss located on lid.
  • Easy to maintain. No tools required, just remove two eye bolts to remove the inside filter for cleaning.
  • Strainer basket design ensures all liquid has to pass through the strainer and no debris or foreign objects can pass through.
  • Aluminum strainer flange provides increased strength and durability.

Recommended products for replacement

Technical Information

Maximum Working Pressure
600kPa (check with Liquip for higher pressure requirements).

Weight
4 kg.

Mounting / Installation
3” TTMA Flanges. Bidirectional.

Gaskets (Strainer Basket)
Viton (also suitable for aviation).

Working Temperature
-20°C to 50°C.

Mesh Specifications
490 micron (standard).

Materials
Aluminium body & lid.
Stainless Steel mesh with aluminum flange.
Viton seal.

Ordering Information

ILS300:Aluminium In-Line Strainer 3” TTMA flange both end with quick release lid for easy
cleaning.

ILS300Z: ILS300 complete with 0656 NBR Cork gaskets.

ILS300VZ: ILS300 complete with 0656V Viton gaskets.

Associated Equipment

0656: 3” TTMA NBR Cork Gasket.

0656V: 3” TTMA Viton™Gasket.

LBV300: 3” Butterfly valve with bonded Viton™ seal.

LBV300Z: LBV300 complete with 2 x 3” TTMA NBR gaskets.

LBV300VZ: LBV300 complete with 2 x 3” TTMA Viton™gaskets.

LBV350VG: 3” Butterfly valve with bonded Viton™ GFLT seal.

BF3: 3” TTMA Aluminium Flange.

BF3-SG: 3” TTMA x 25mm thick.
