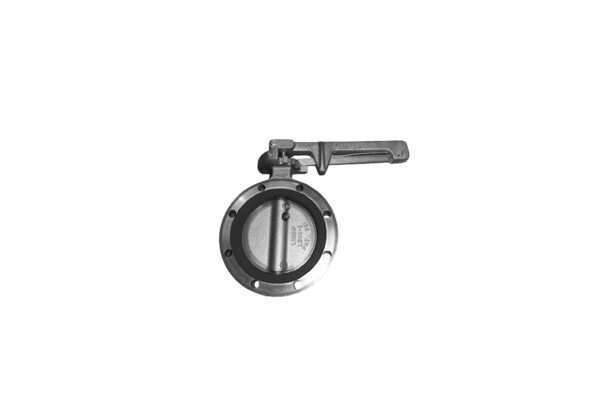

4" Flanged Butterfly Valves

Liquip's range of 4" butterfly valves provide and control full flow through pipelines fitted with 100mm (4") TTMA flanges.

With a lightweight and durable design Liquip's butterfly valves are the butterfly valve of choice.

Features & Benefits

4 stage opening/closing valve.
100mm (4") product flow.
Industry Standard 4" TTMA Flange Mounting.
Bonded Viton B70 or GFLT seal for increased durability.
Bonded seal also means no gaskets are required.
Lightweight aluminium body.
Can be fitted with an air actuator or locking tab as required.

Technical Information
Ordering Information
Associated Equipment
Resources

Technical Information

Working pressure
1,500 kPa (210 PSI) in open position.
750 kPa (109 PSI) in closed position.

Operating temperature
LBV450VG: –40°C to 100°C.
LBV450: –10°C to 100°C.

Mounting
Mounts directly to Liquip 100mm TTMA standard flange with chamfered entry to ensure disc clearance in open position.

Adjustment/Service
Periodically (recommended every 6 months), inspect butterfly seat.

Materials
Body - Cast aluminium.
Butterfly disc - Cast aluminium.
Handle - Cast aluminium with zinc plated steel locking lever.
Spindle - Stainless Steel.
Seal - LBV450VG: Bonded Viton GFLT.
LBV450: Bonded Viton B70.

Weight
1.8kg - LBV450 Series
1.45kg - LBV4-LA.

Ordering Information

LBV450: 4” Butterfly valve c/w bonded Viton B70 seal (BLACK).

LBV450VG: 4” Butterfly valve c/w bonded Viton GFLT seal (GREY).

LBV450VGZ: LBV450VG c/w 2 x 4” TTMA Viton gaskets.

LBV450L: 4” Butterfly valve c/w bonded Viton B70 and NO handle. C/W Aluminium locking tab (LBV4-7).

LBV450VGL: 4” Butterfly valve c/w bonded Viton GFLT and NO handle. C/W Aluminium locking tab (LBV4-7).

LBV4-LA: 4” machined butterfly valve c/w GFLT seal and no handle to suit actuators.

LBV4-AAZ: 4” Butterfly Valve & Air Actuator Kit.

LBV450-AASRZ: 4” Butterfly Valve & Spring Return Actuator Kit.

Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.

Submit Enquiry

Submit a product Enquiry / Quote to Liquip customer service

Save as Wishlist

Save as Wishlist - handy function for account holders

Send to a Friend

Send you selection of products to a friend via a convenient email link

Image	Item	Description	Add Item into Enquiry Cart

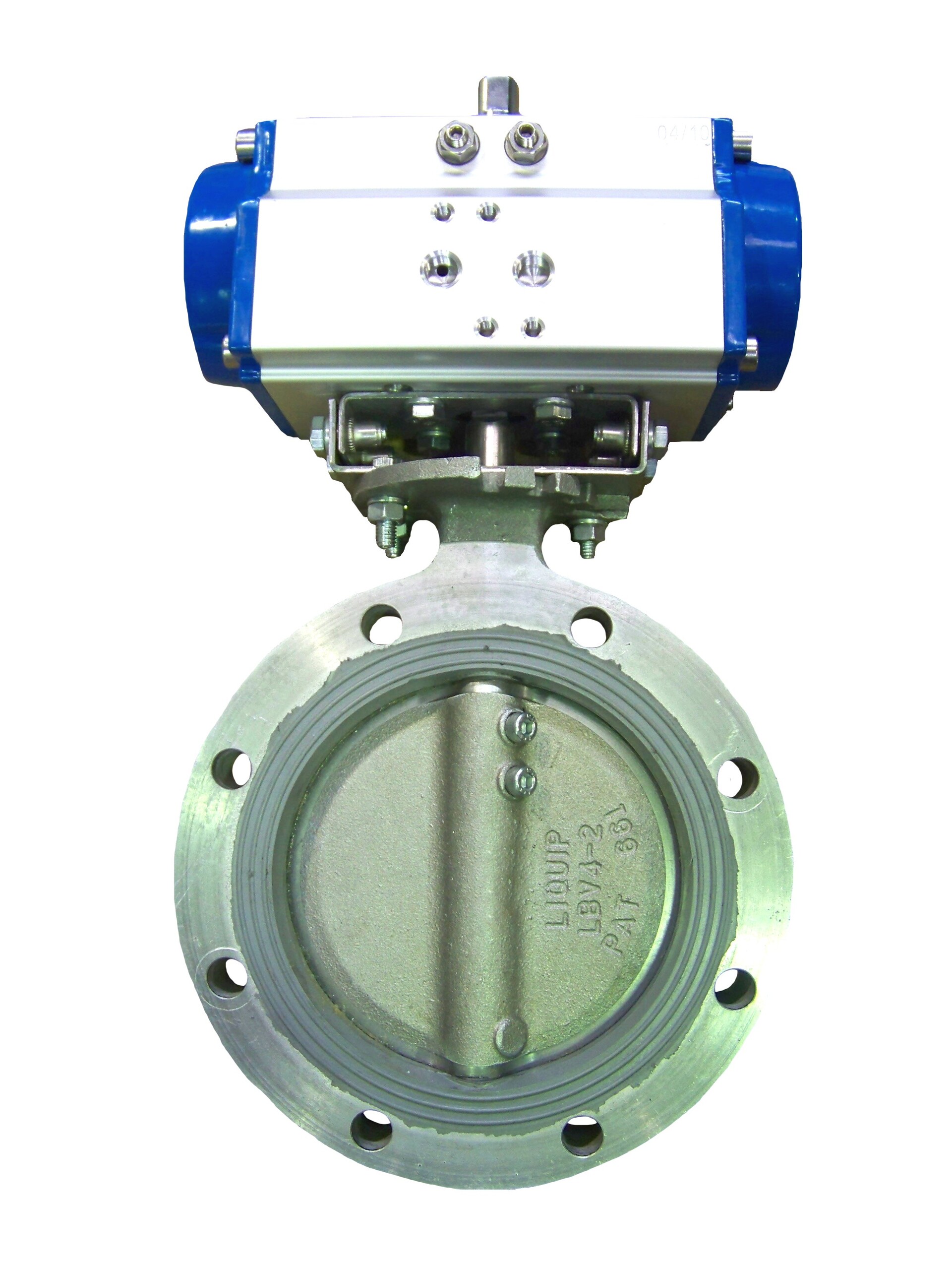

	LBV4-AAZ	4” Butterfly Valve & Air Actuator Kit.
	LBV4-LA	4” machined butterfly valve c/w GFLT seal and no handle to suit actuators.

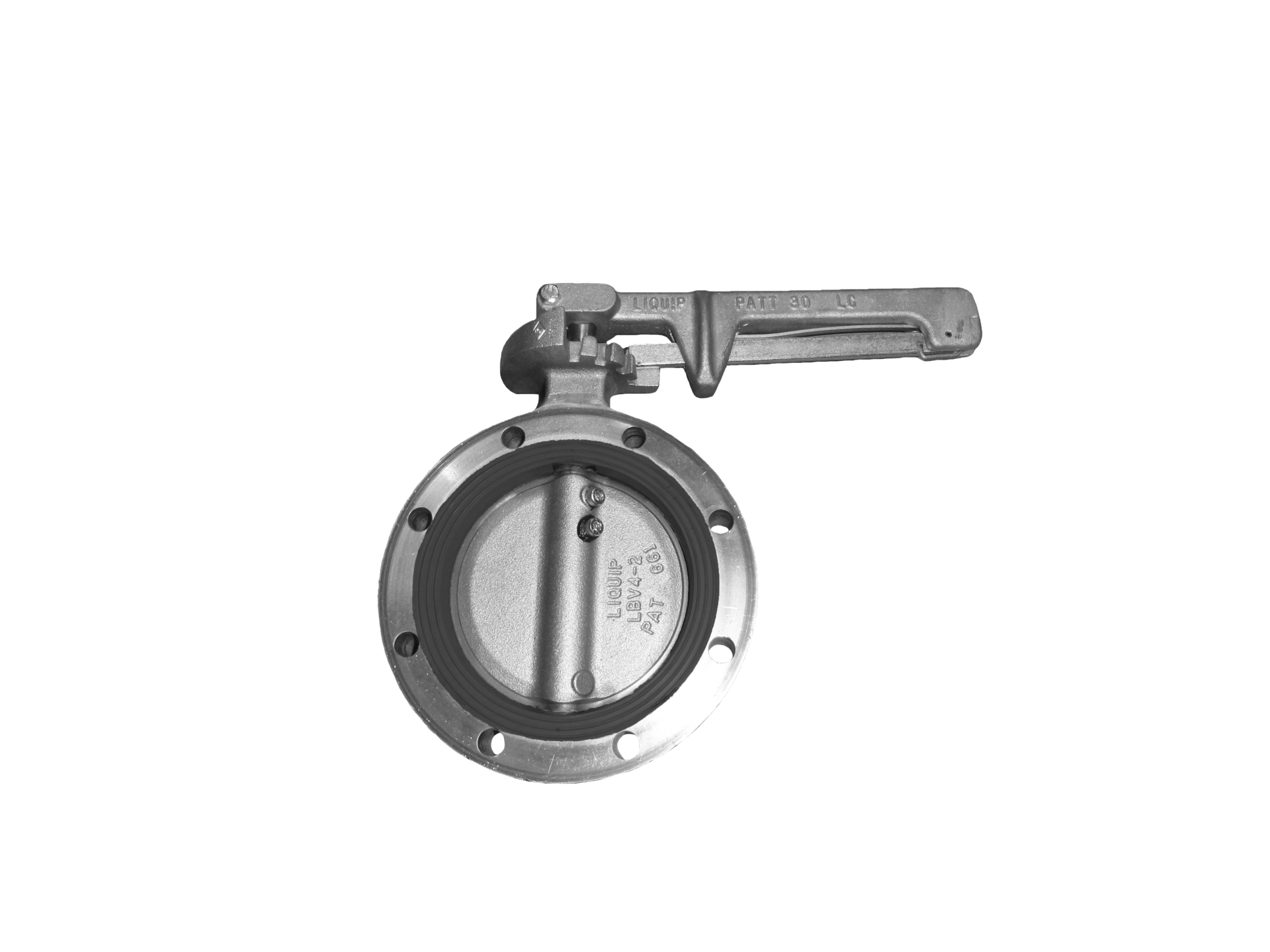

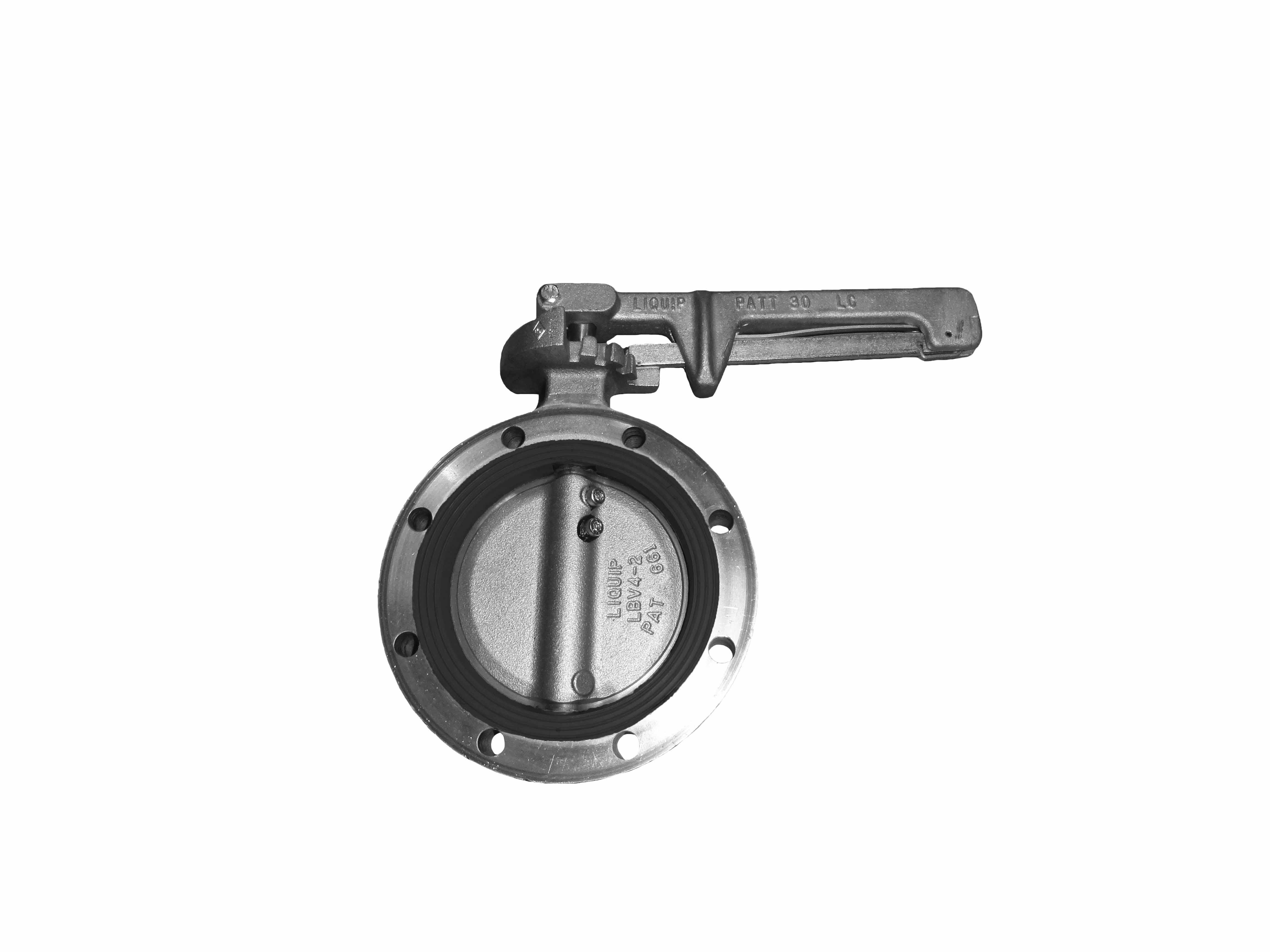

	LBV450	4” Butterfly valve c/w bonded Viton B70 seal (BLACK).
	LBV450-AASRZ	4” Butterfly Valve & Spring Return Actuator Kit.
	LBV450L	4” Butterfly valve c/w bonded Viton B70 and NO handle. C/W Aluminium locking tab (LBV4-7).

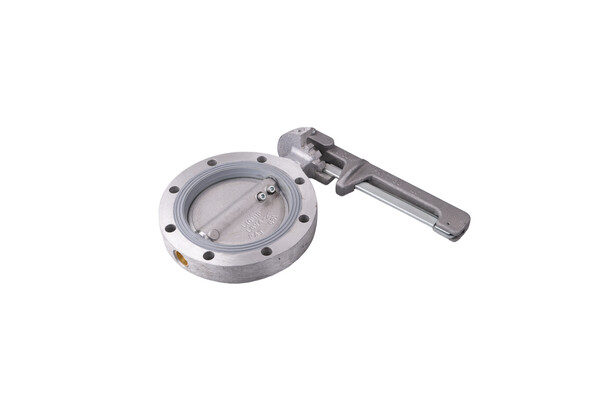

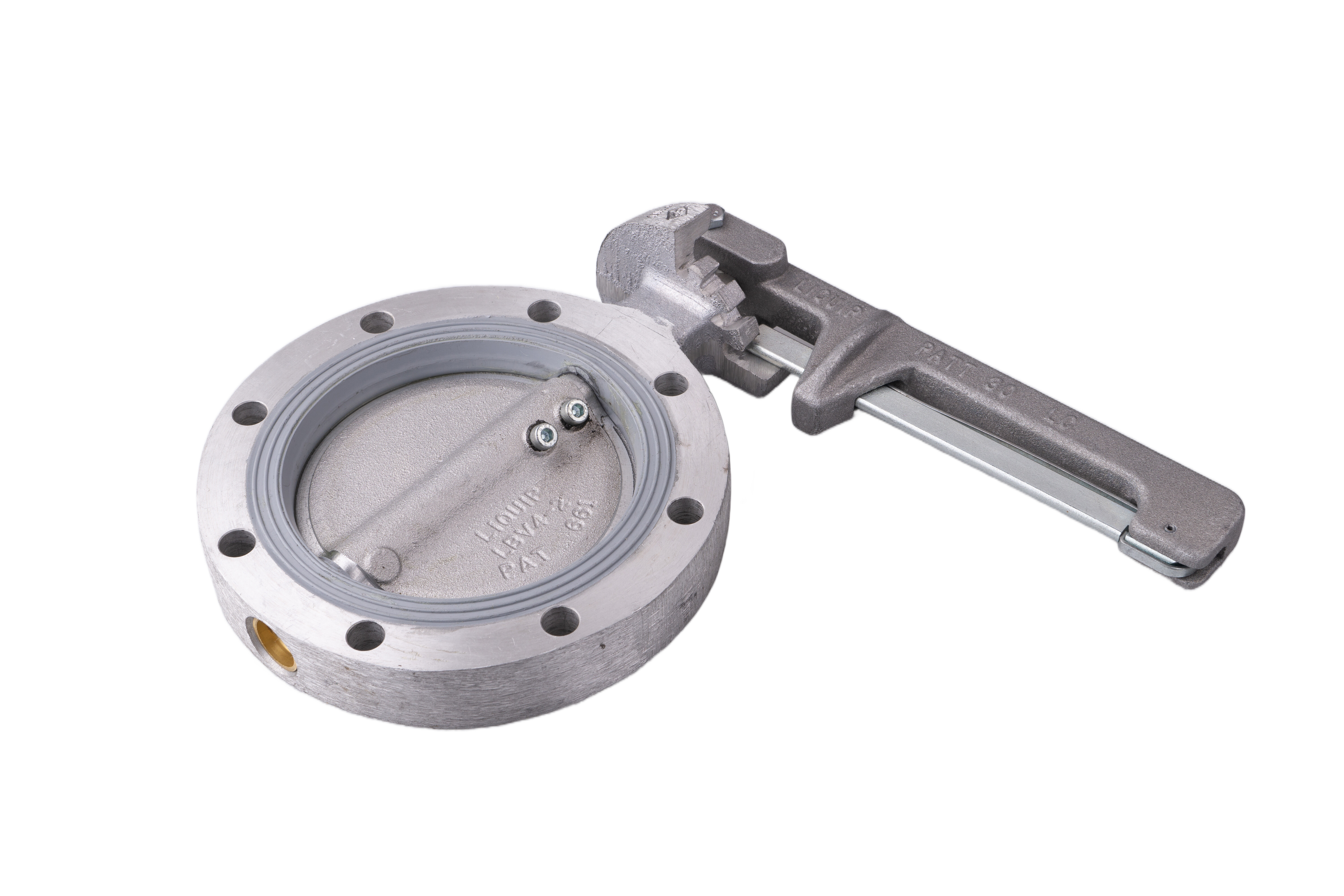

	LBV450VG	4” Butterfly valve c/w bonded Viton GFLT seal (GREY).

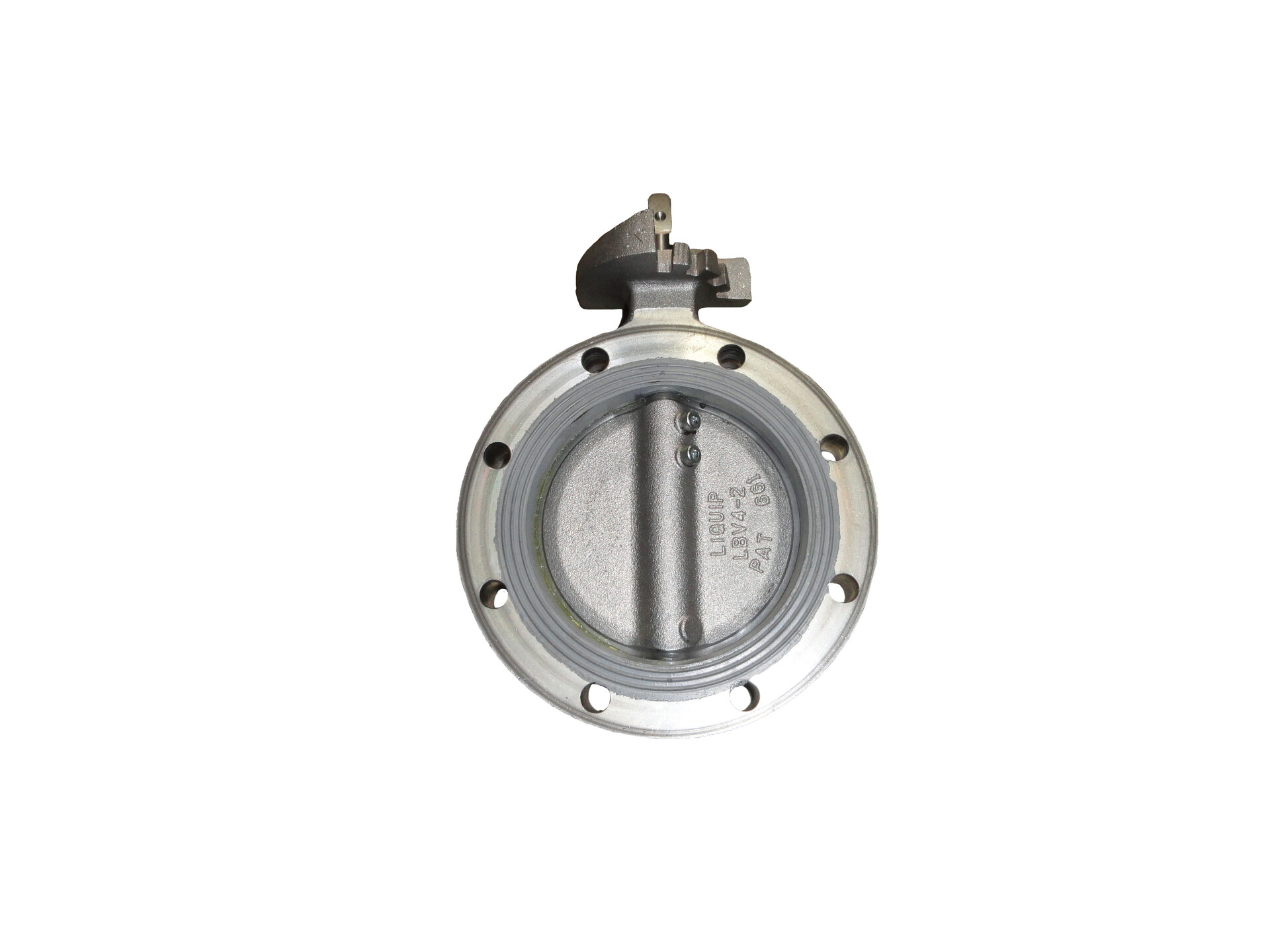

	LBV450VGL	4” Butterfly valve c/w bonded Viton GFLT and NO handle. C/W Aluminium locking tab (LBV4-7).
	LBV450VGZ	LBV450VG c/w 2 x 4” TTMA Viton gaskets.
