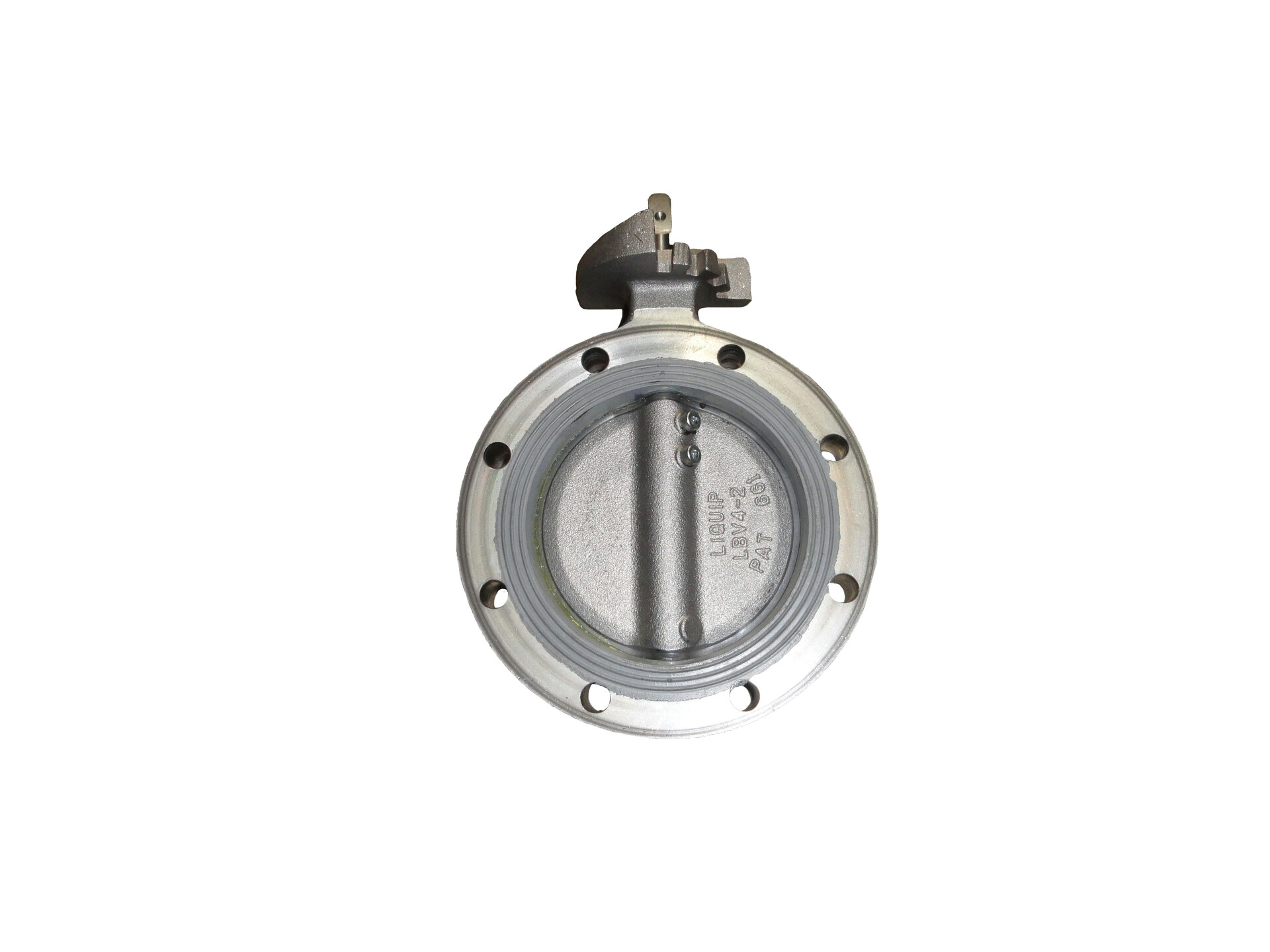

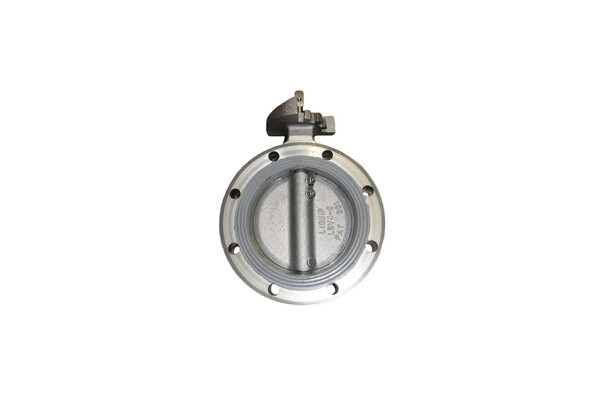

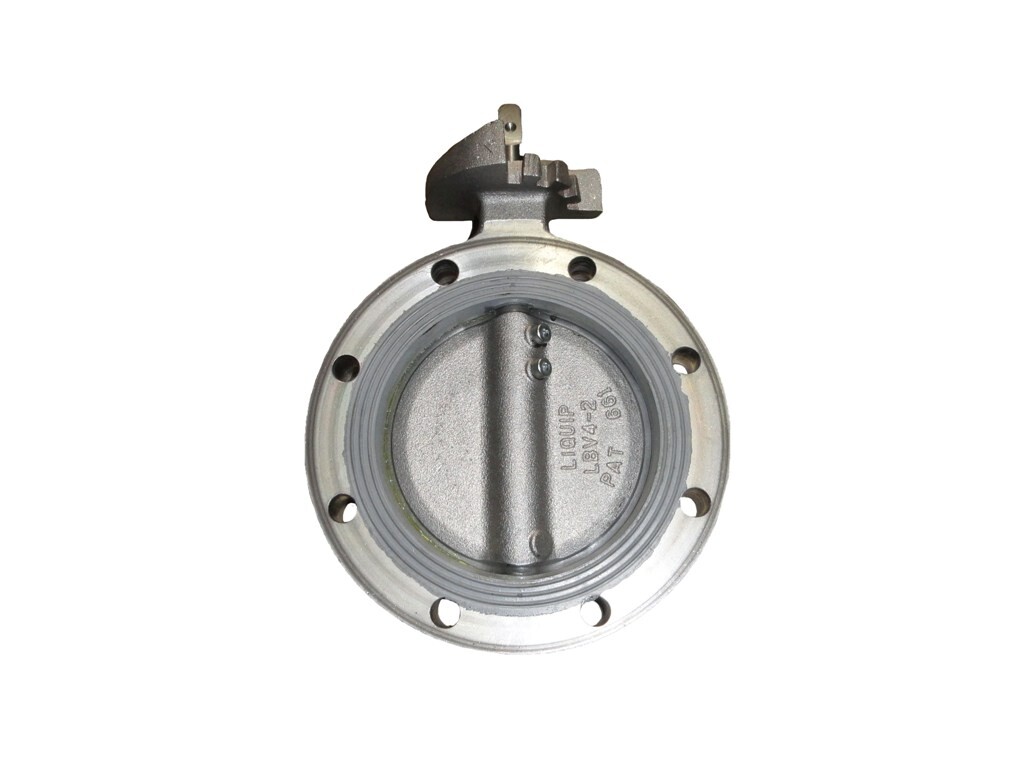

4" Lockable Flanged Butterfly Valves



Liquip's lockable 4" butterfly valves provide and control full flow through pipelines fitted with 100mm (4") TTMA flanges.

The Lockable feature ensures users don't inadvertently  lock or open the butterfly valve.

Features & Benefits
  • 100mm (4") product flow with locking tab.
  • Bonded Viton GFLT seal for increased durability.
  • Bonded seal also means no gaskets are required.
  • Industry Standard 4" TTMA Flange Mounting.
  • Lightweight aluminium body.
  • Can be fitted with an Air Actuator or locking tab as required.

Recommended products for replacement

Technical Information

Working pressure
1500kPa (210 PSI) in open position.
750kPa (123.25 PSI) in closed position

Operating temperature
–40°C to 100°C.

Mounting
Mounts directly to Liquip 100mm TTMA standard flange with chamfered entry to ensure disc clearance in open position.

Materials
Body - Cast aluminium.
Butterfly disc - Cast aluminium.

Spindle - Stainless Steel.
Seal - LBV450VG: Bonded Viton GFLT.
         LBV450: Bonded Viton B70.

Adjustment/Service
Periodically (recommended every 6 months), inspect butterfly seat.

Weight
1.8kg - LBV450L and LBV450VGL.

LBV450L: 4” Butterfly valve c/w bonded Viton B70 and NO handle. C/W Aluminium locking tab (LBV4-7).

LBV450VGL: 4” Butterfly valve c/w bonded Viton GFLT and NO handle. C/W Aluminium locking tab (LBV4-7).

LBV4-LA: 4” machined butterfly valve c/w GFLT seal and no handle to suit actuators.

LBV4-AAZ: 4” Butterfly Valve & Air Actuator Kit.

LBV450-AASRZ: 4” Butterfly Valve & Spring Return Actuator Kit.

LBV-AA: Air Actuator.

LBV-AASR: Spring Return Air Actuator.

LBV4-7: locking tab.

BF4: 100mm TTMA aluminium flange (also available in mild & stainless steels).

0657V: 100mm TTMA Viton gasket.

4248: 100mm TTMA Klingerite gasket.


Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer service
Save as Wishlist
Save as Wishlist - handy function for account holders
Send to a Friend
Send you selection of products to a friend via a convenient email link
Image Item Description
Add Item into Enquiry Cart
LOCKABLE BUTTERFLY VALVES
LBV450L 4” Butterfly valve c/w bonded Viton B70 and NO handle. C/W Aluminium locking tab (LBV4-7).
LBV450VGL 4” Butterfly valve c/w bonded Viton GFLT and NO handle. C/W Aluminium locking tab (LBV4-7).
LOCKING TABS
LBV4-7 Locking tab.
