Gantry Plugs & Cable - GP10X Series

Liquip gantry plugs are industry standard 3 or 4 bayonet (J-slot) plugs with 10 pin as standard to cover all installation options. The GP10x plug provides the interface between the terminal/gantry systems and a tanker for overfill protection and/or grounding.

Gantry plugs are designed for use with common industry overfill protection monitors including the Liquip RM140 “Overfill Monitor”.

ADD TO ENQUIRY CART REQUEST A QUOTE

Features & Benefits
Technical Information
Ordering Information
Associated Equipment
Resources

Features & Benefits

3 or 4 J-slot configurations available to suit all industry truck plugs.
Caters for up to 8 compartments with 2-wire probes.
All materials are non-static producing.
Robust petroleum-resistant housing which can withstand harsh environments.
10 core self-coiling petroleum-resistant cable (8m maximum reach).
High-visibility cable for ease of visibility and safety.
Supplied with a M25 cable gland. Junction box is supplied with an adaptor to ¾” NPT. This allows interchangeability for spare parts.
Junction box includes hanger for cable loop-spring.
Socket is heavily ribbed for better grip and bayonet positions clearly visible by being mounted on bosses.

Technical Information

Cable parameters
Capacitance C = 1.1 nF.
Inductance L = 12 μH.
Inductance/Resistance Ratio L/R = 35 μH/Ω.

Materials
Aluminium Box
Polyurethane plug body.
Stainless steel pins and fittings.
10 cores cable (32x 0.2mm), outersheath polyurethane, Blue.

Weight
3.5kg for GP10x only.
5.0kg for total including junction box.

Mounting
Junction box has two internal mounting holes for 8mm diameter bolts.
Note: Replace the cable gland with appropriate approved explosion-proof types if directly installed to the Overfill monitor.

Spare Parts
5115 Self-store coiled cable, Blue.
Plugs are available as spare part, order as GP103-3 or GP104-4.

Ordering Information

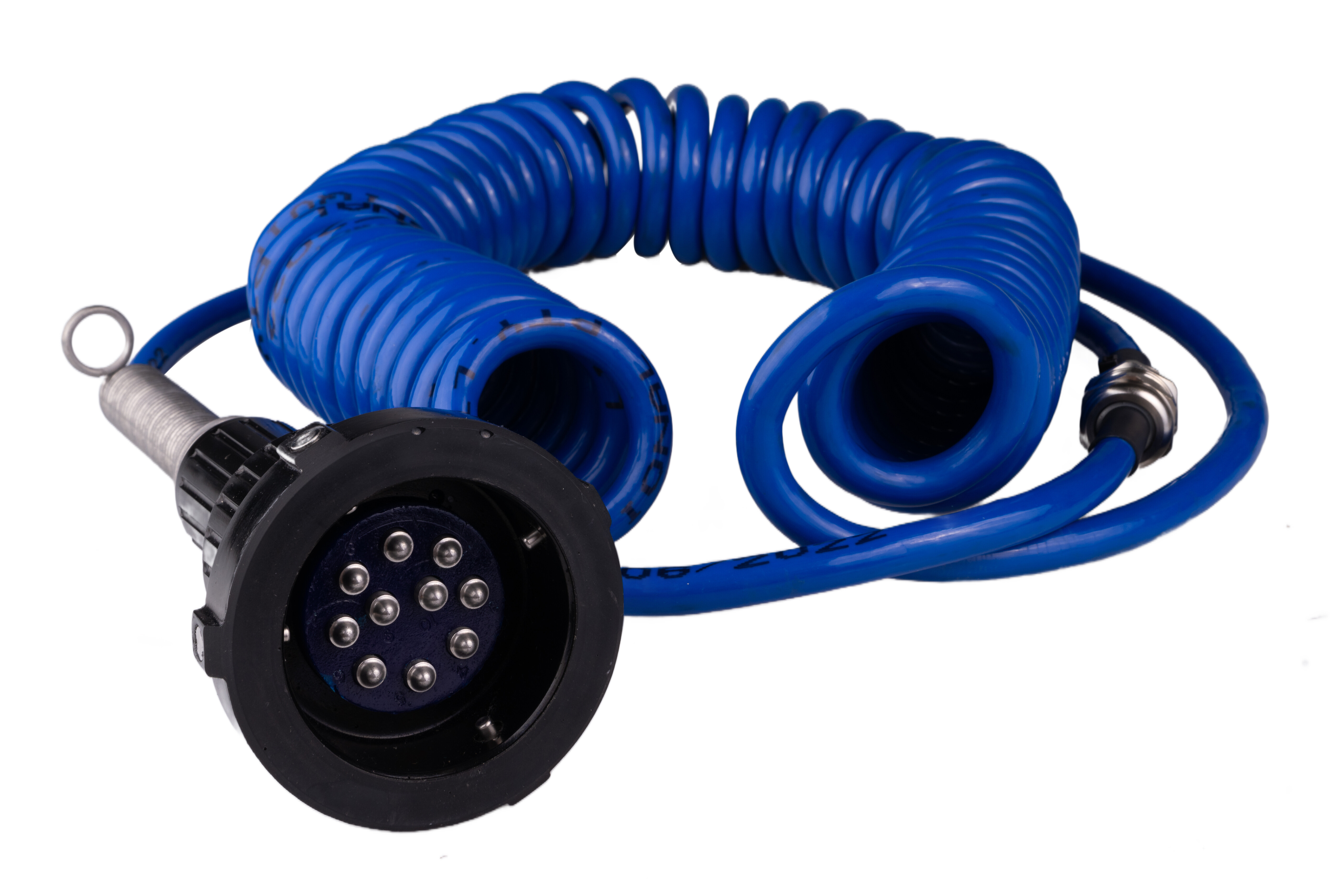

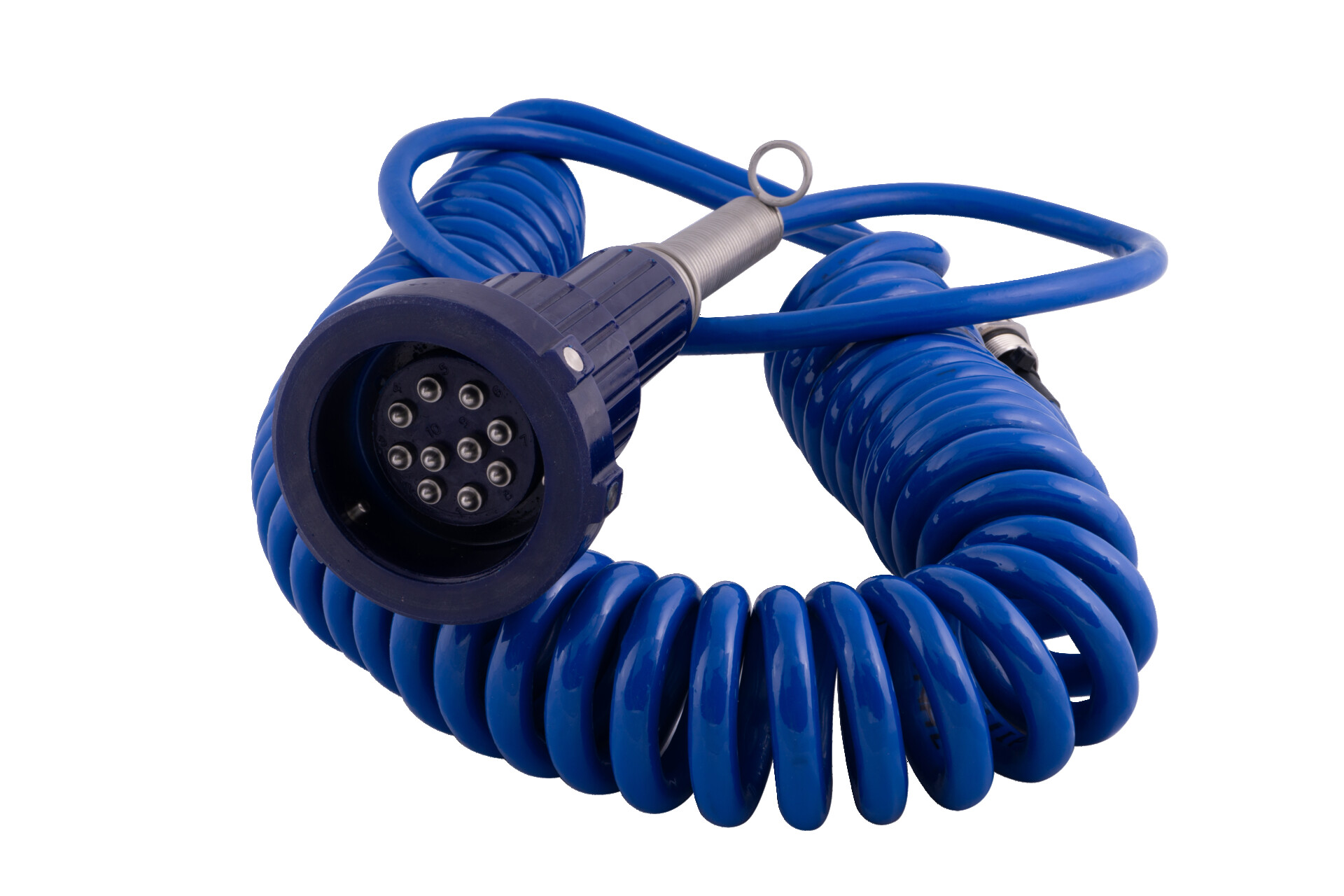

GP103: Gantry plug, 3-pin bayonet, Navy Blue, with blue cable & gland.

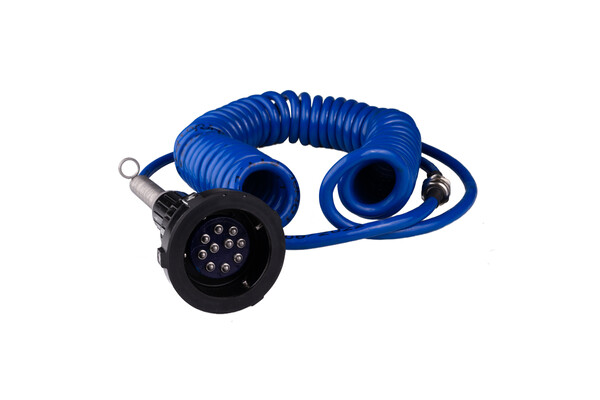

GP104: Gantry plug, 4-pin bayonet, Black, with blue cable & gland.

GP114Z: Gantry plug, 4-pin bayonet, Black, with blue cable supplied with quick release connector & gland.

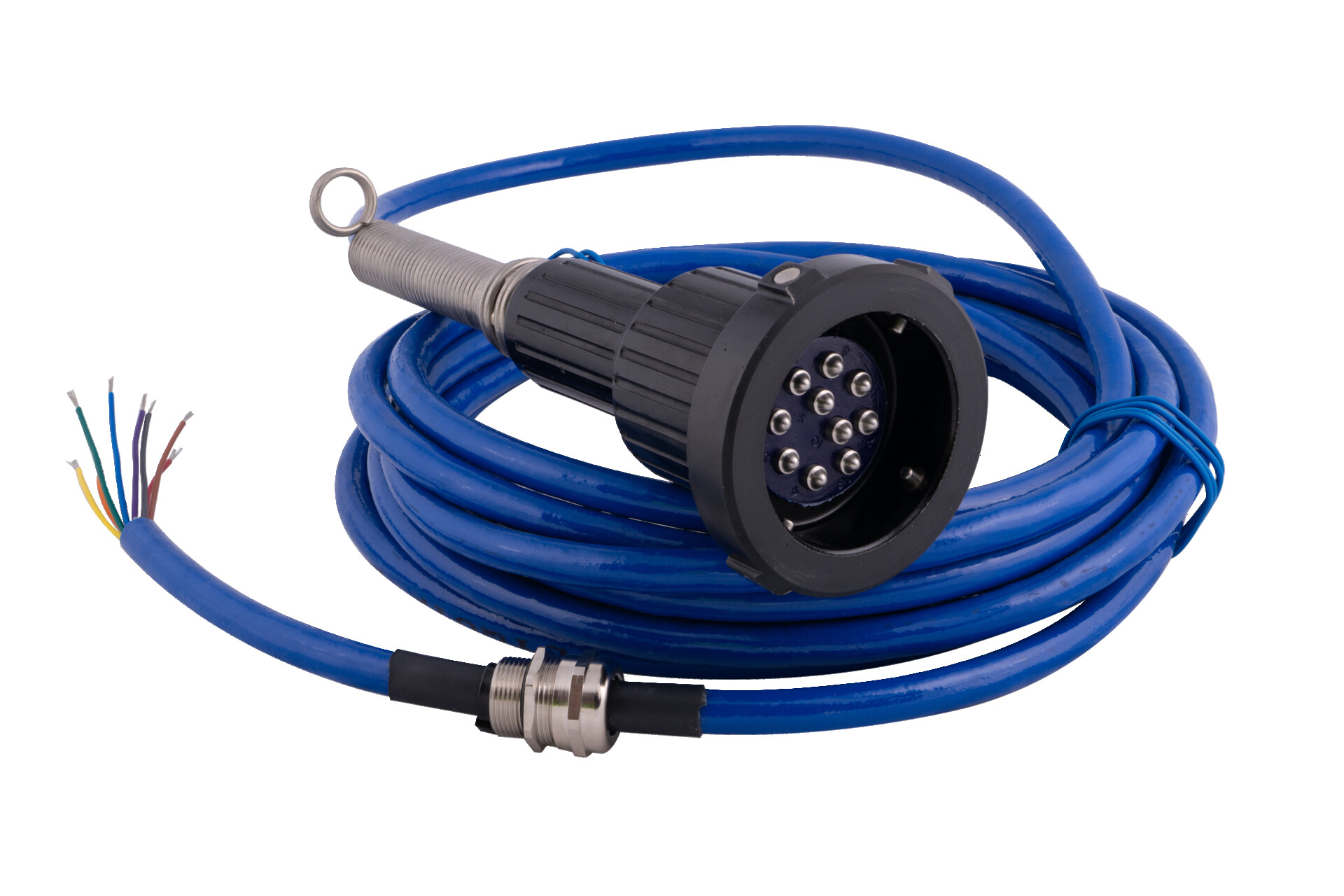

GP204: Gantry Plug, 4-pin bayonet , Black, with straight blue cable & gland.

Associated Equipment

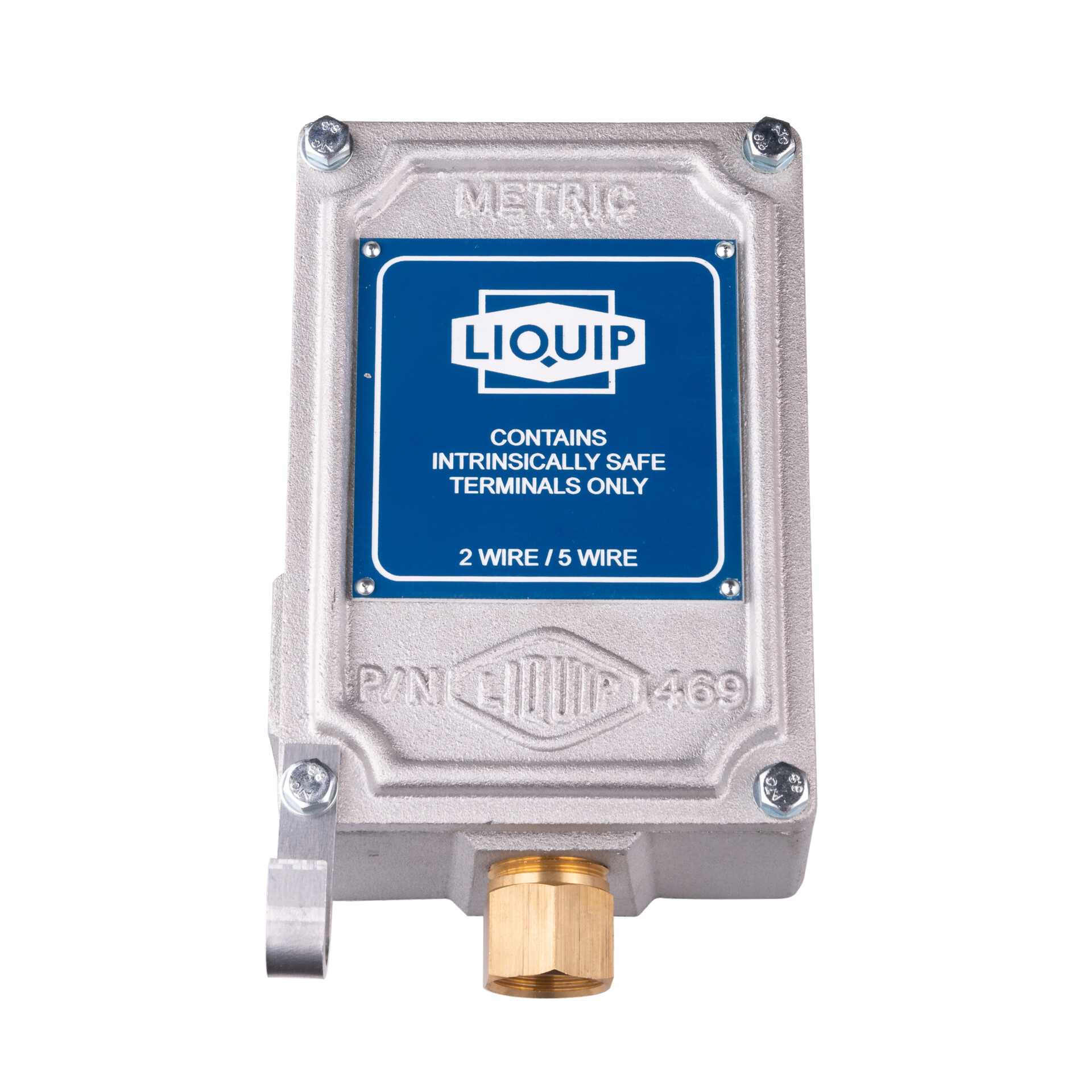

JB100: Junction box comes with 2 x ¾” NPS cable entries at top and bottom.

JB103: Junction box comes with 3 x ¾” NPS cable entries at top, bottom and left hand side.

5115: Self-store coiled cable, Blue.

Liquip RM1xx Series Overfill Protection Monitor.

Liquip PD50x Series Overfill Protection Monitor.

Liquip TP Series “Ground Boss” Truck Plug.

Liquip TPA Series Gantry Plug Parking adaptors.
