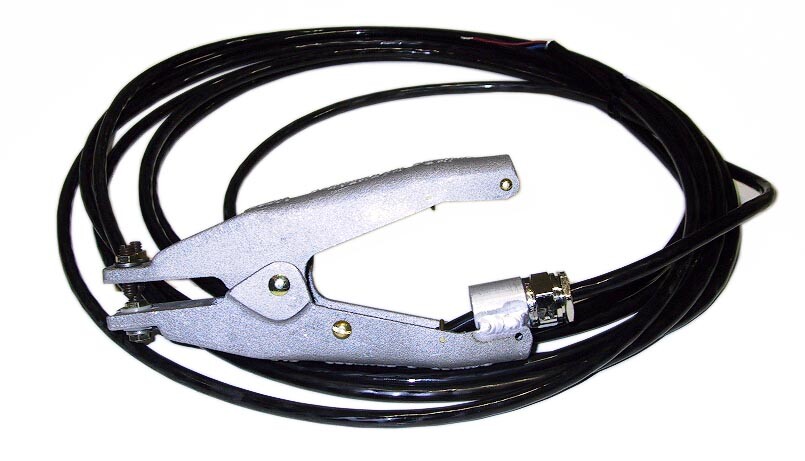

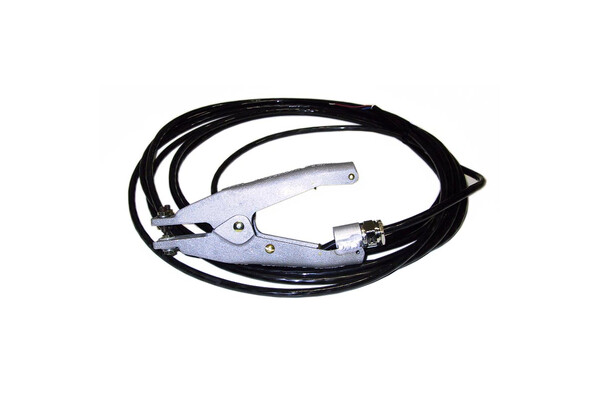

Earth Assurance Clamps



Liquip offers earth assurance clamps to ensure the correct grounding of a truck's chassis prior to loading or unloading to eliminate static build up.



Features & Benefits
  • 8m cable length supplied.
  • Can be supplied with straight cable or self-storing (curly) cable.

Recommended products for replacement

    Technical Information

    Operation
    Before connecting any other equipment to truck, attach clamp to a suitable grounding point no more than 12.7 mm (1/2") thick.

     Materials
    -Clamp body - cast aluminium.
    -Cable - polyurethane sheathed.
    -Contacts - cone point grub screws – stainless steel.

    Weight
    1.3kg (clamp and cable).


    Technical Data
    8m cable length supplied
    EAC201S has straight cable.
    EAC202S has self-storing (curly) cable.

    Ordering Information

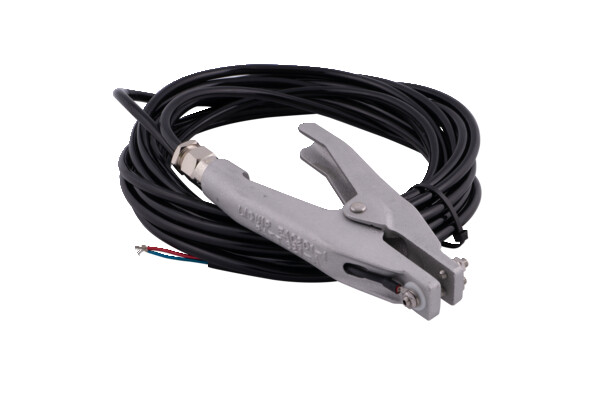

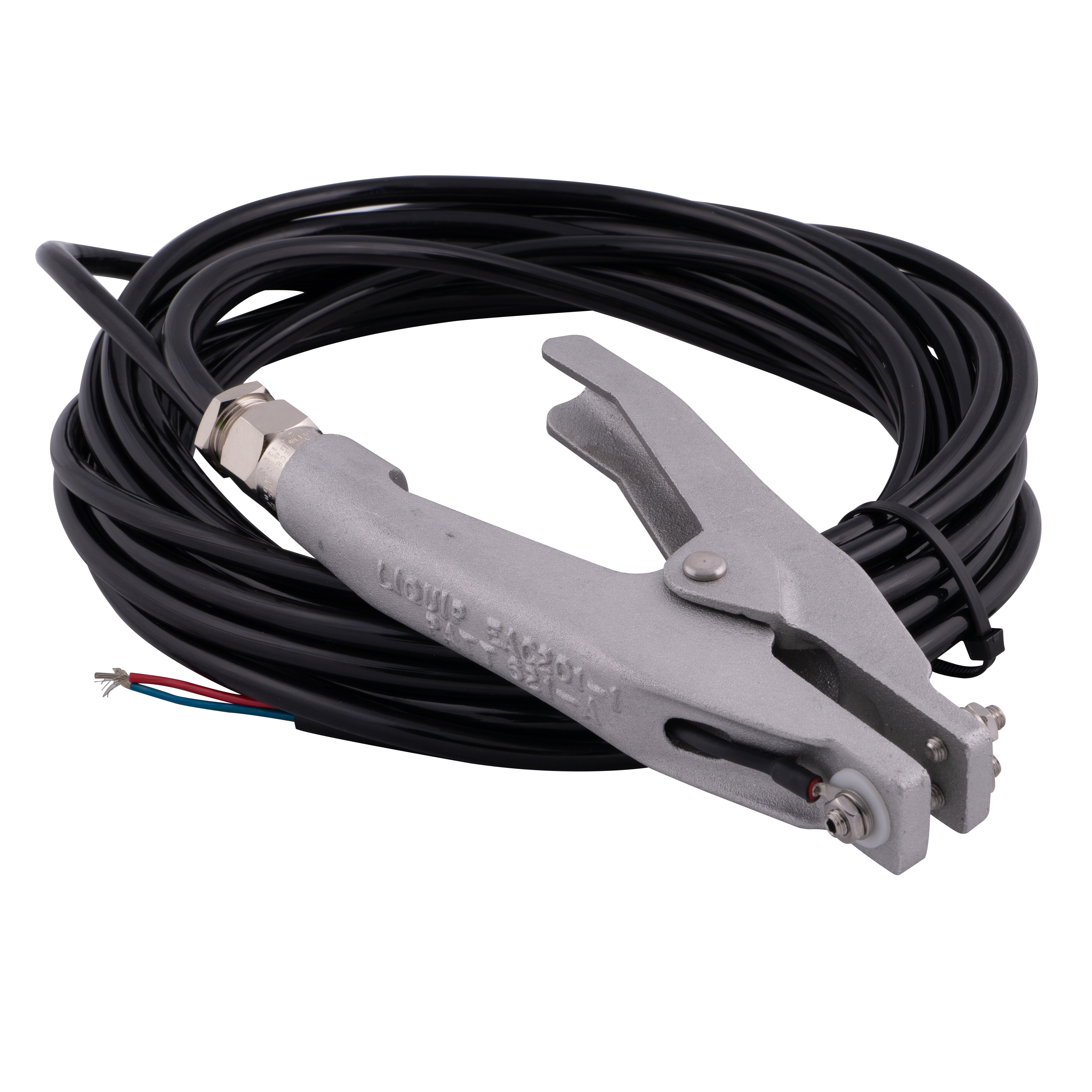

    EAC201S: Earth Assurance clamp with 8m straight cable.

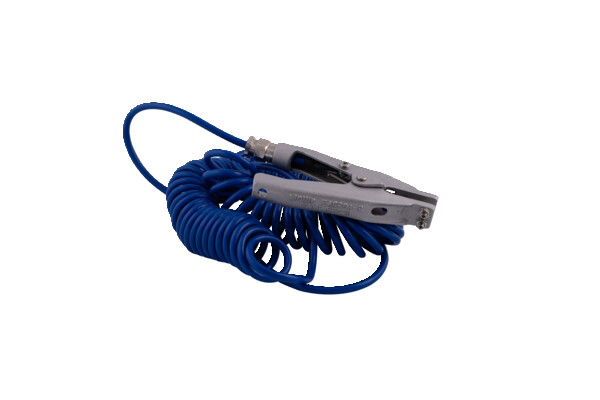

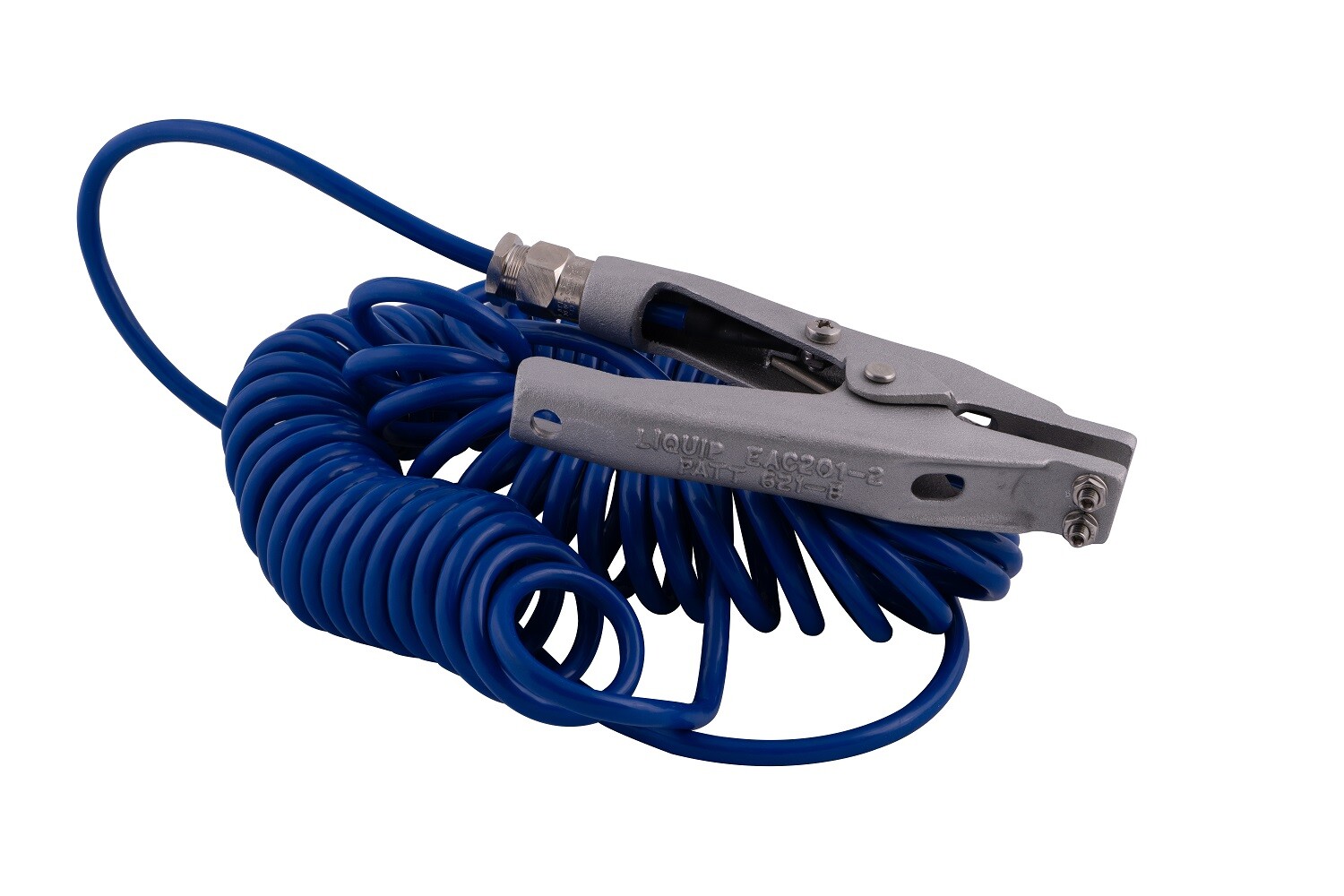

    EAC202S: Earth Assurance clamp with 8m self-storing (curly) cable.

    Associated Equipment

    RM140D: Overfill monitor (typical configuration for Australian market).

    RM140E: Overfill monitor (typical configuration for Global markets).
